Adjustable Carrera 2 Pulleys/Roller- Giesse doors and windows - Sold singly
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.

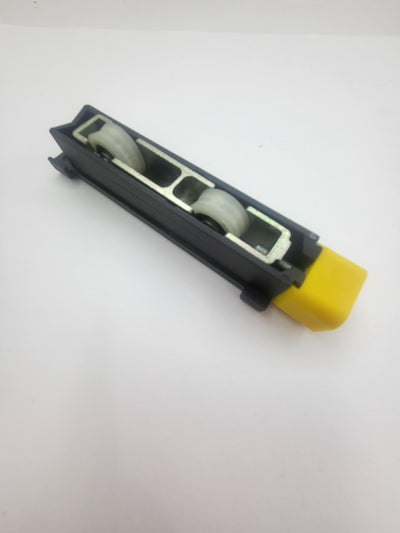

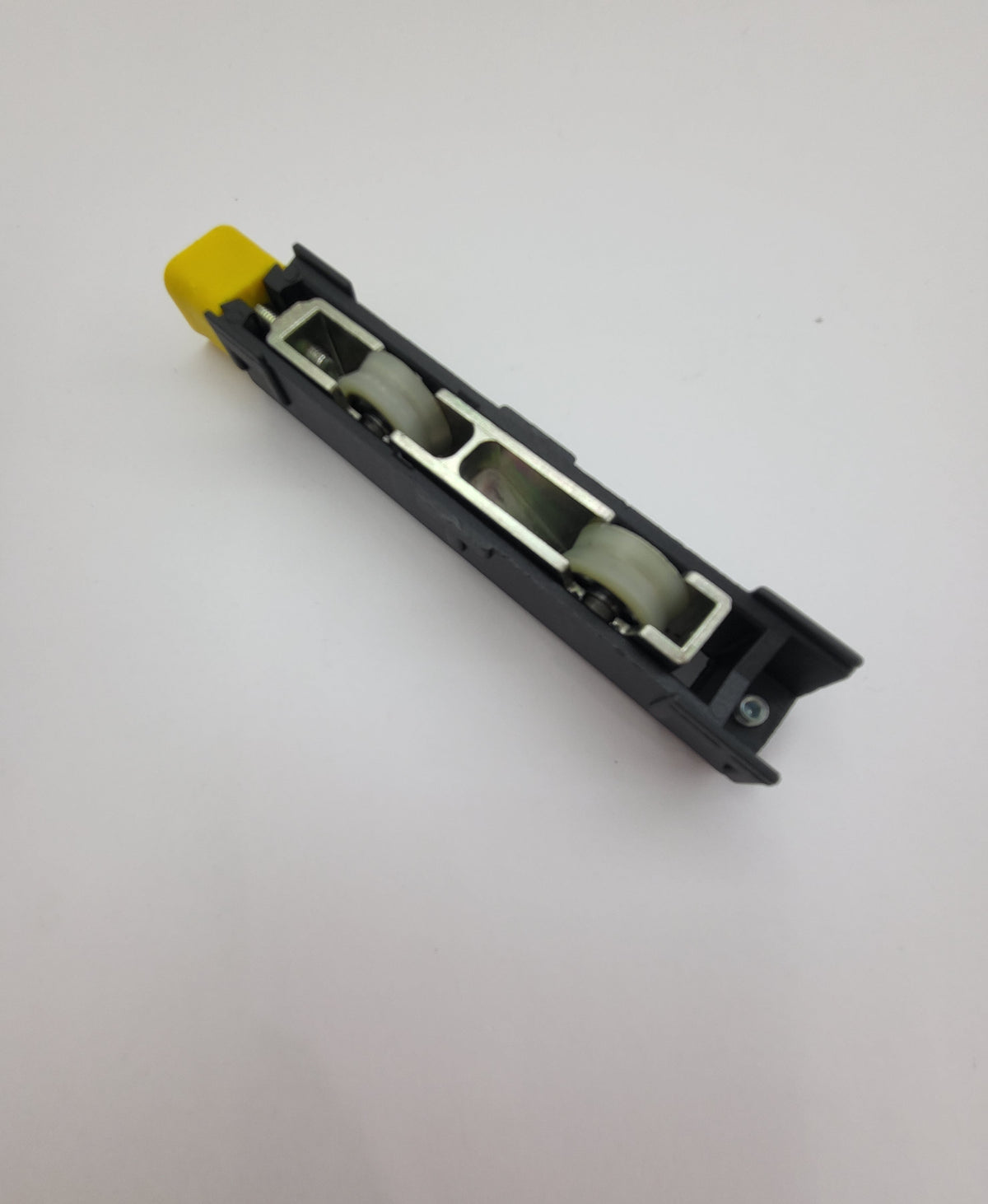

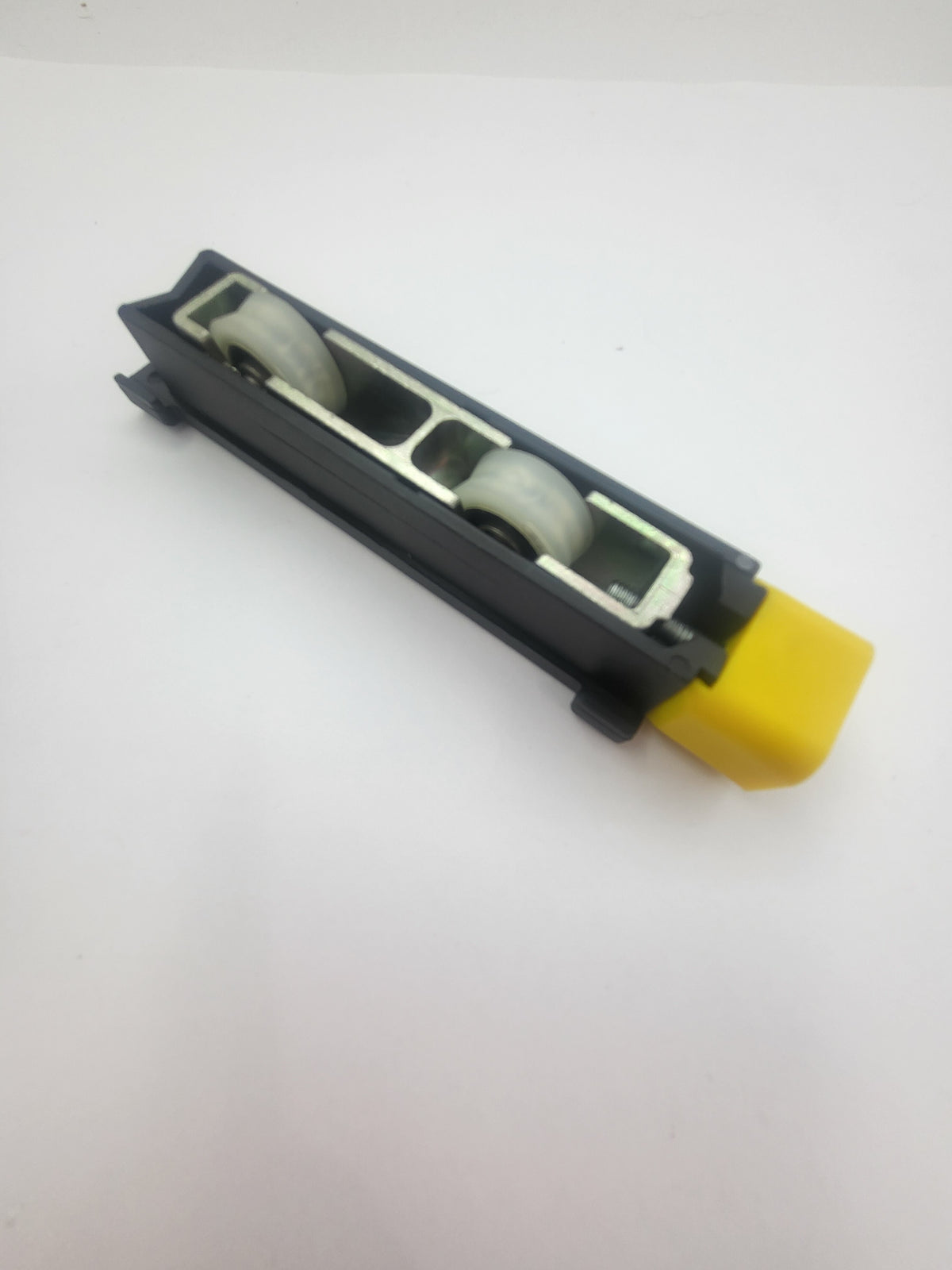

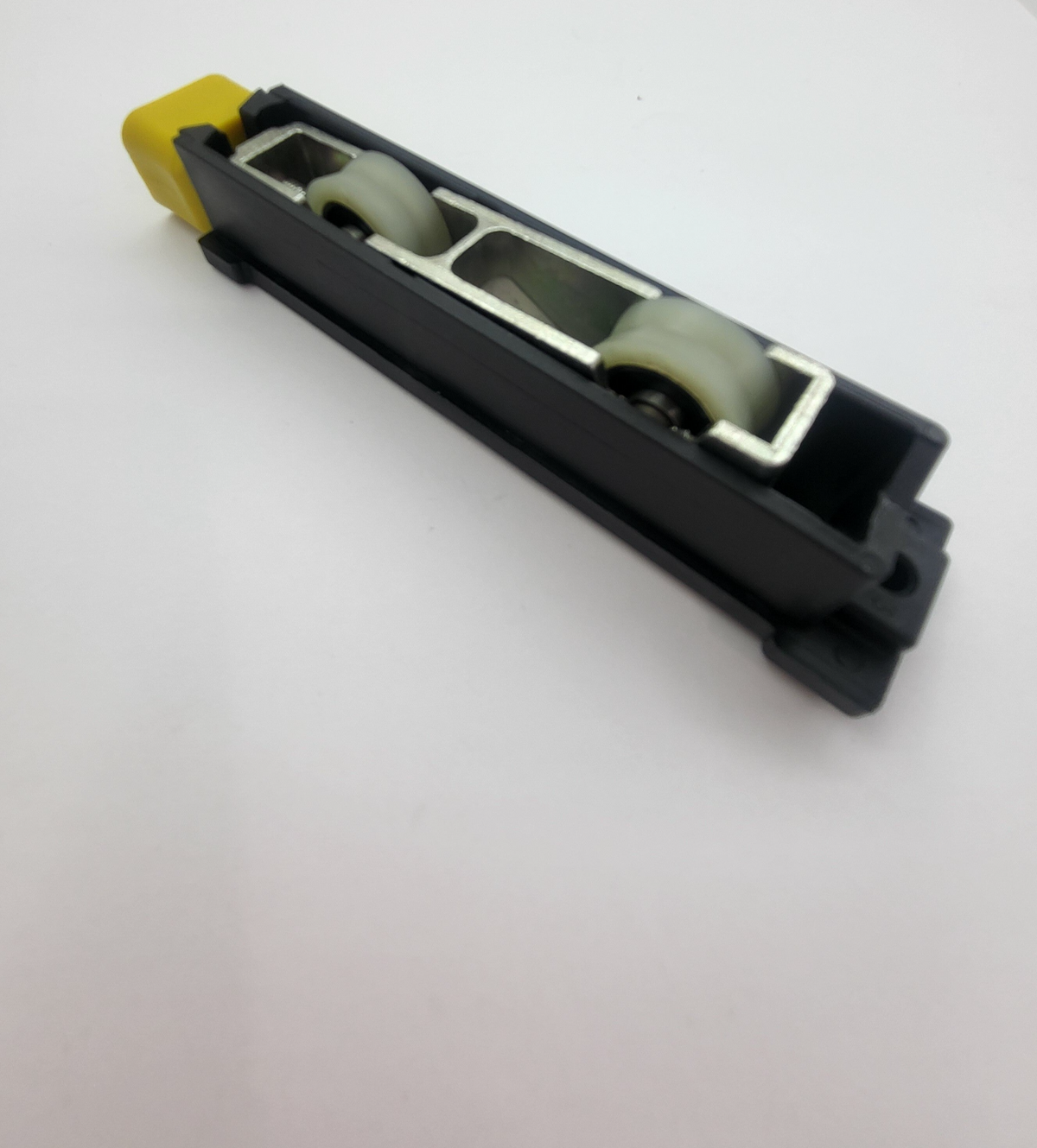

Adjustable pulley with two wheels for doors and windows in Aluminium- Suits Giesse Windows and Doors.
Sold Singly (ADD number required)
OPTIONS:

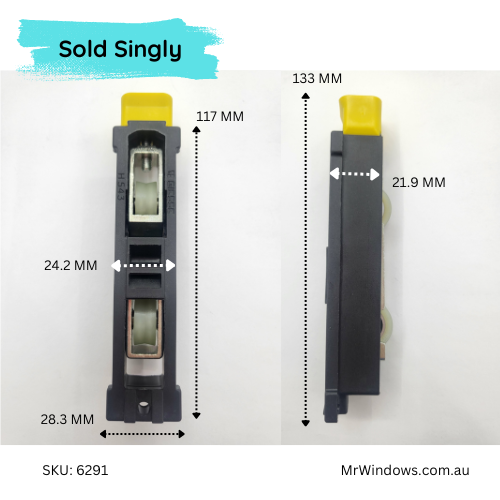

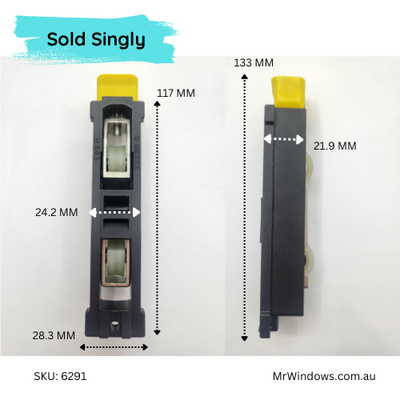

- SKU 6291- 28mm W

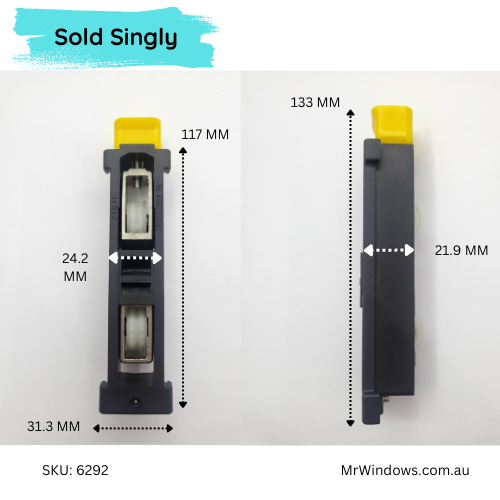

- SKU 6292- 31mm W

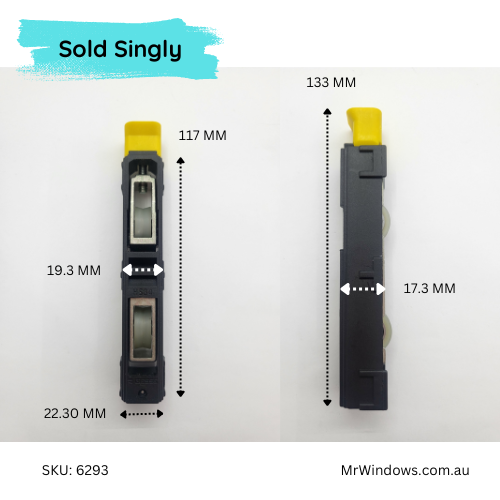

- SKU 6293- 23mm W
Materials
- Support in grey polyamide
- Yellow polyamide centering element
- Wheel support in Silver Plus zamak
- Wheel with bearing in steel and neutral reinforced polyamide cover
- Mounting grub screw and adjustment screw in stainless steel
Technical Features

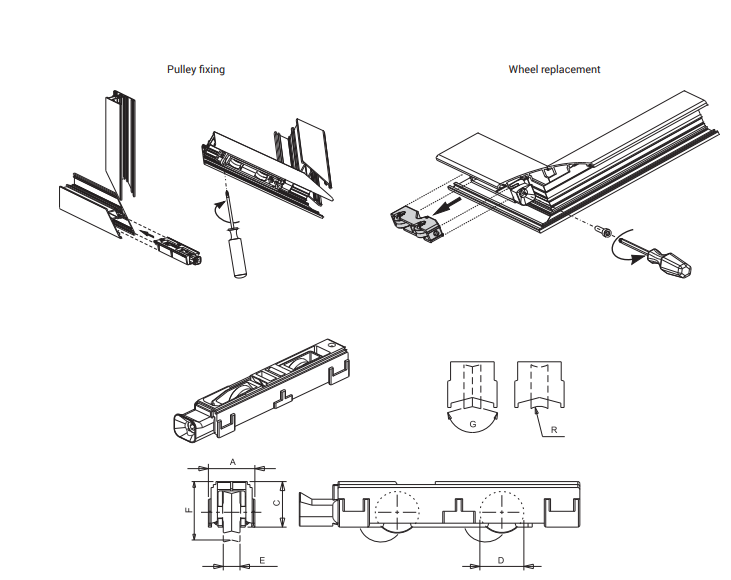

- The pulley is fixed with a clamping grub screw, without requiring specific
machining. - Micro metrically adjustable, it enables moving the sash vertically in an overall
range of on average 4 mm (see adjustment column in the table). - Adjustment is easy since the adjustment screw is located inside the yellow
centering element which facilitates insertion of the key. The adjustment can
also be made with the sash already mounted and installed. - The wheels are normally mounted on ball bearings or needle bearings depending on the model and can be removed together with the support without
having to disassemble the pulley. - The wheels with bearings are shielded to keep the grease inside them.
-
