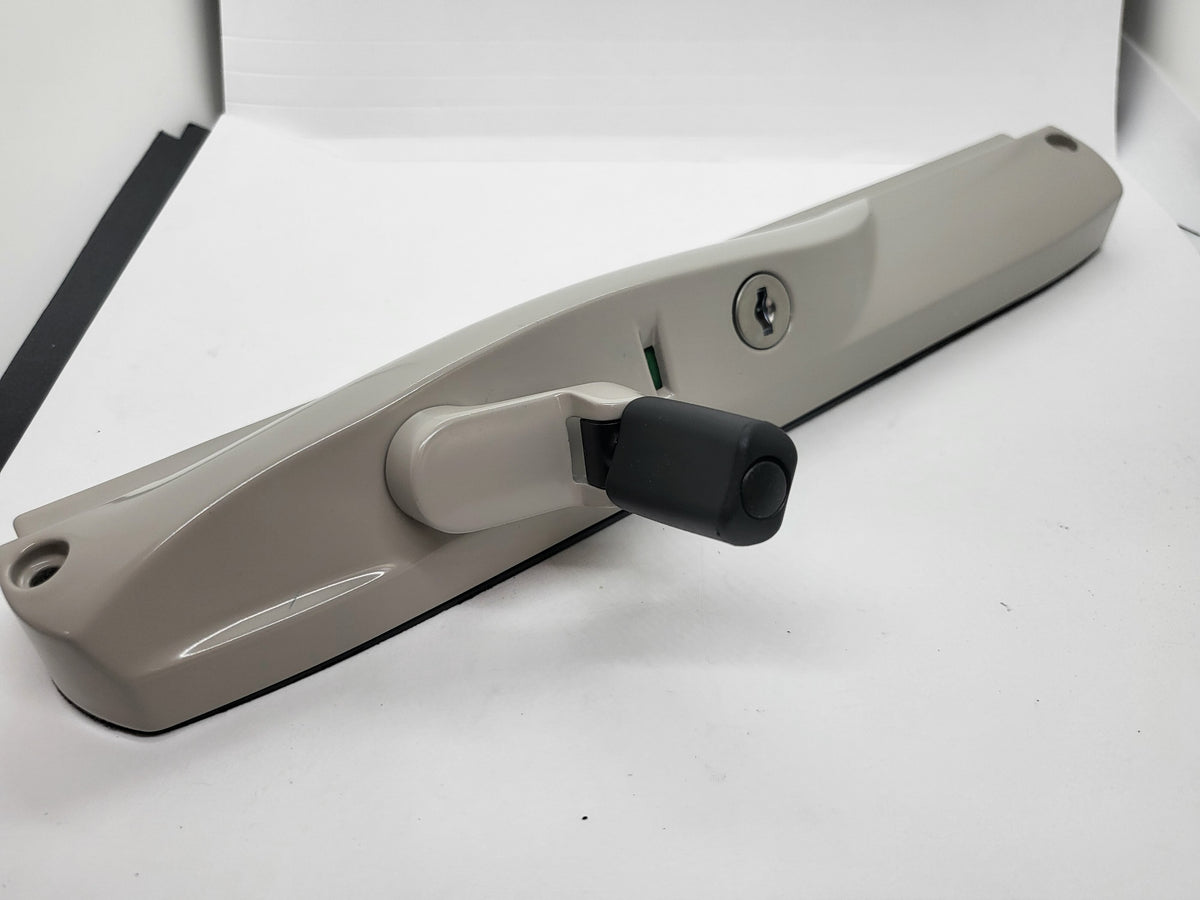

Chain Winder NEW DS1, DS2 (replaces old DS1177)
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.
DS1and DS2 chain winders by Doric - keyed # 27006

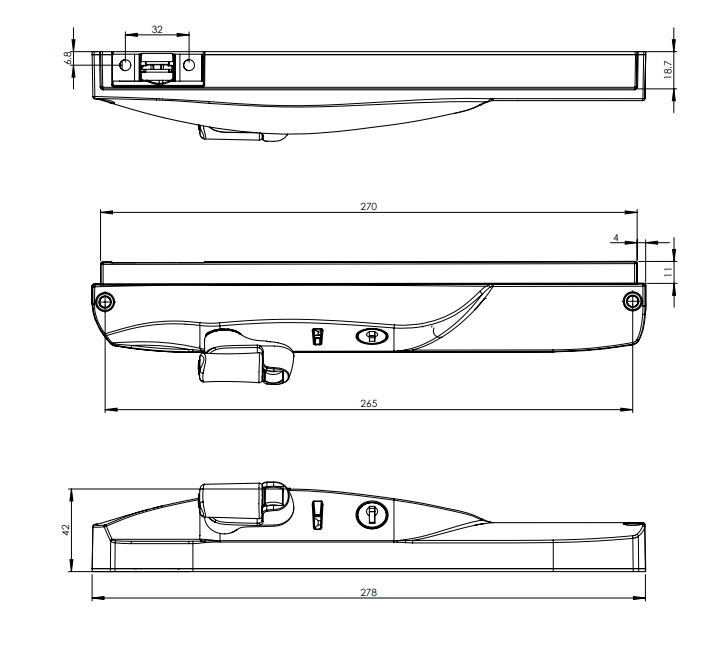

Dimensions: 278mm long (265mm between hole fixings centers) x back 270mm long x 42mm high x 45mm wide

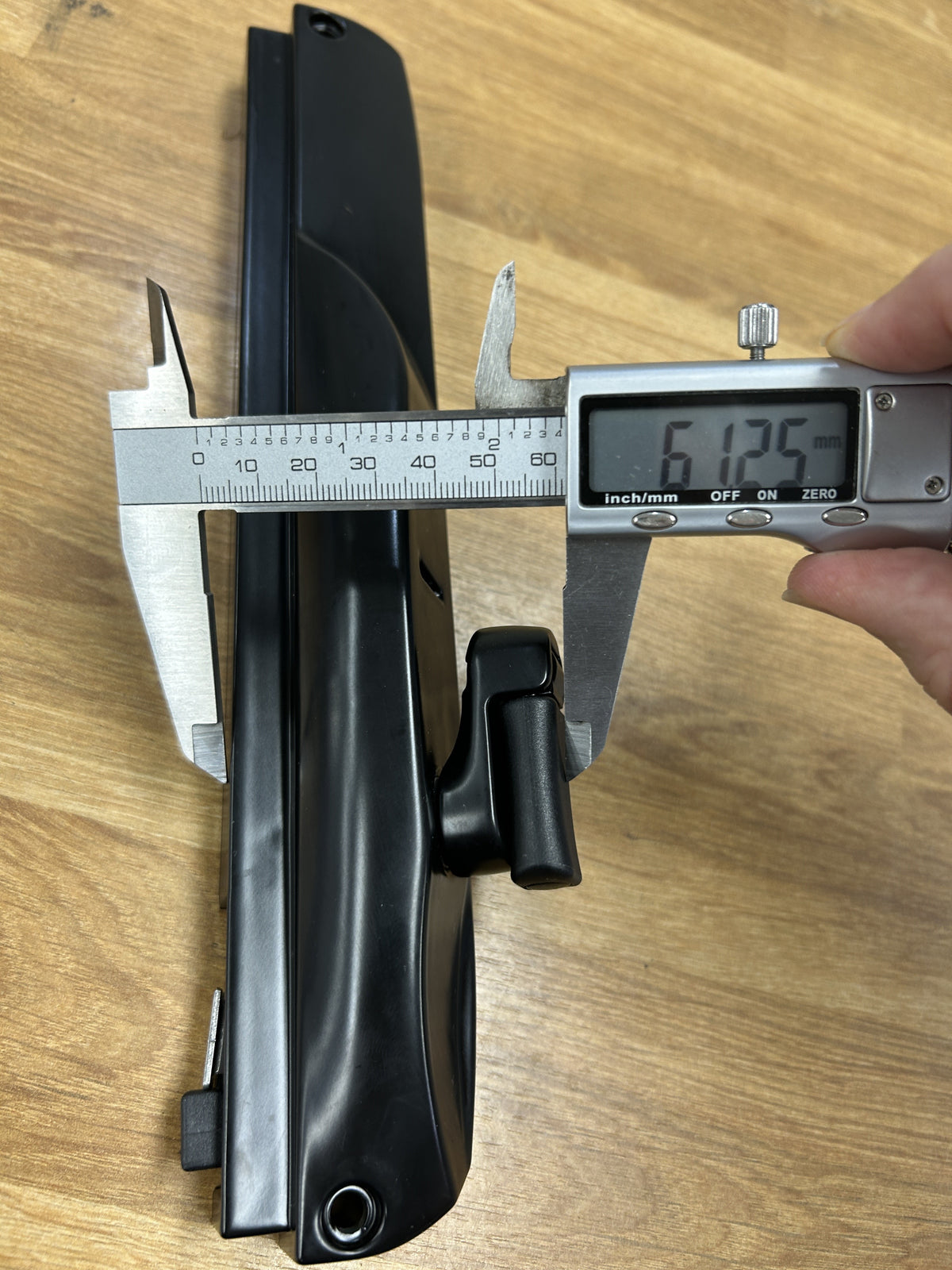

GALLERY images show additional dimensions: handle height 20.88mm - back of base to front of handle 61.25mm
Chain Restriction Switch - Inbuilt Restriction switch to easily restrict chain length where window restriction is required
Handle: Ergonomic Fold Down Handle - Designed to compliment the shape of the winder. Simply pull to fold down.
Keyed: Lock Indicator and 6 Disc Cylinder - Allows you to clearly see if the winder is in the locked or unlocked position. Can be keyed alike to other Doric window or door products.
Easylink Attachable Sash Plate - Easylink is a simple one way fitment to simplify Chain winder installation. Easylink improves manufacturing productivity by reducing installation time.
Handle Arm with Adjustable Spline - Handle can be orientated to match other winders in the house. Simply loosen handle grub screw and re-secure handle in the desired position.
Finishes HELD IN STOCK - OPTIONS

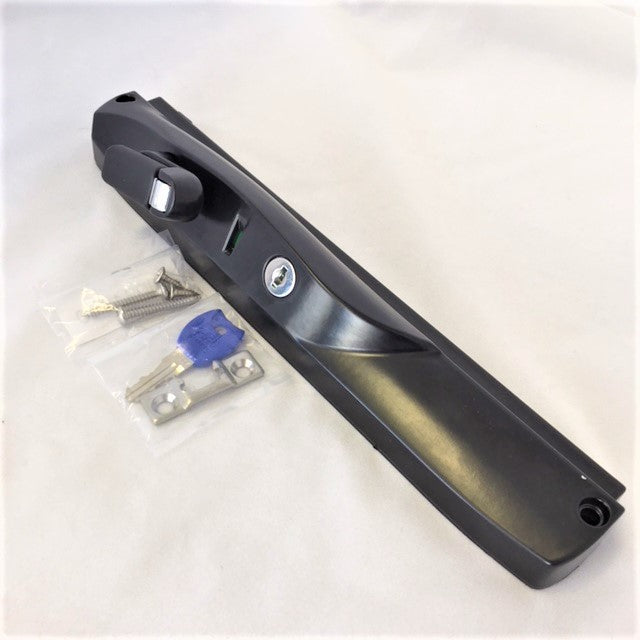

- SKU 2901 DS1 (key locking) BLACK

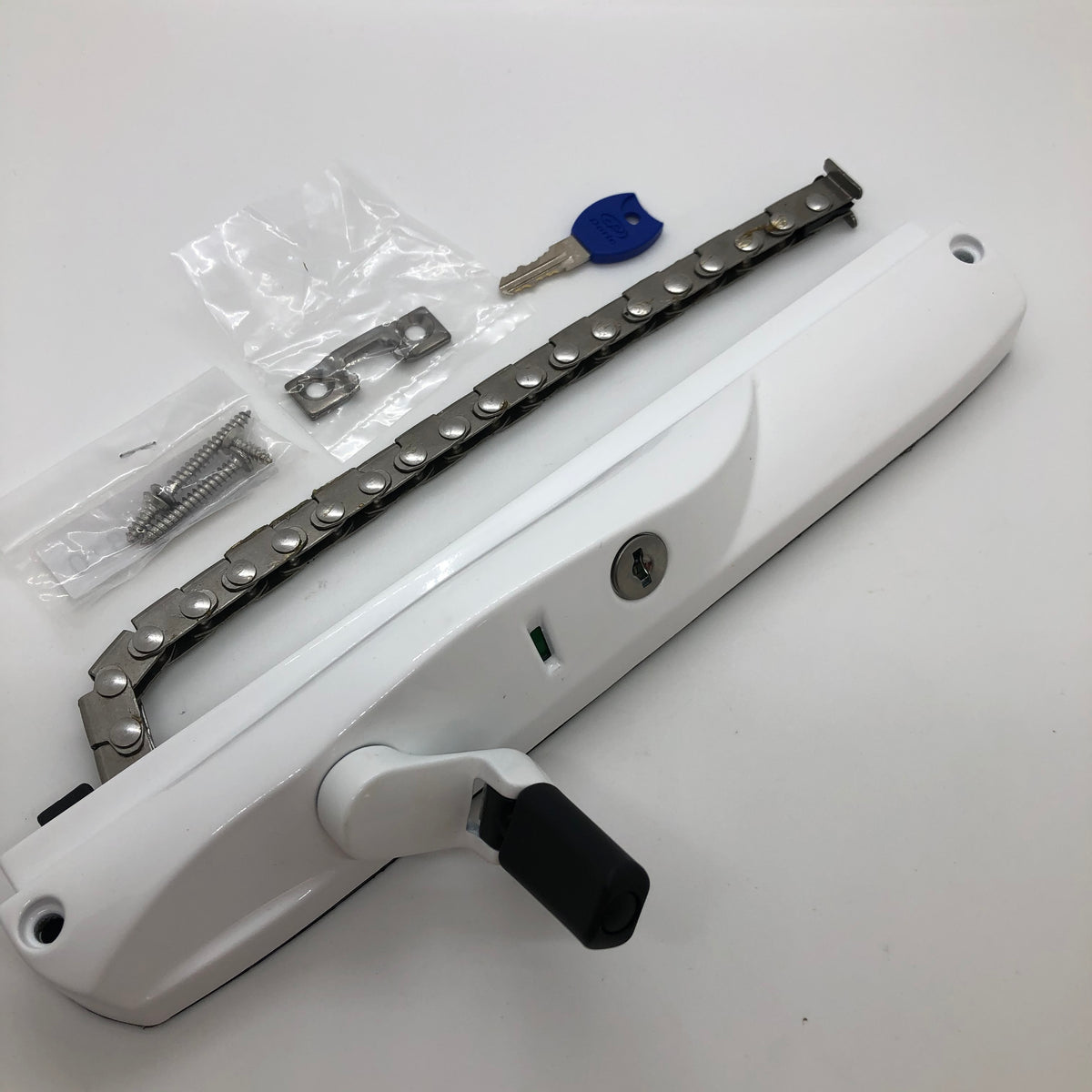

- SKU 2900 DS1 (key locking) WHITE

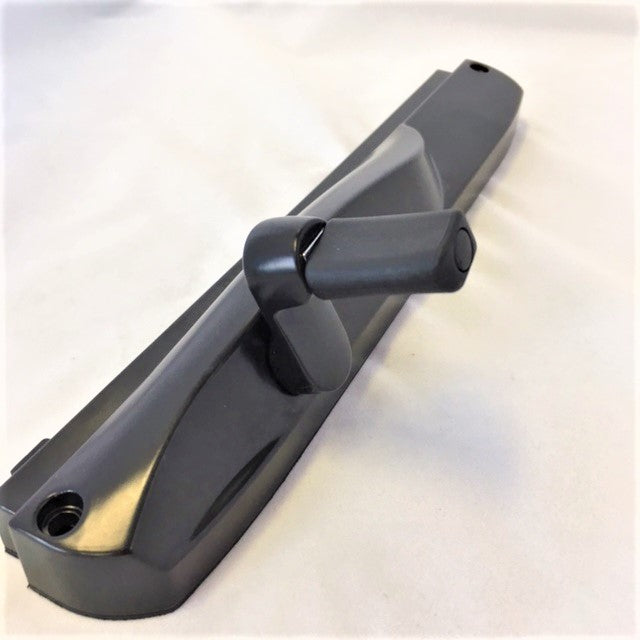

- SKU 2902 DS2 (non locking) BLACK

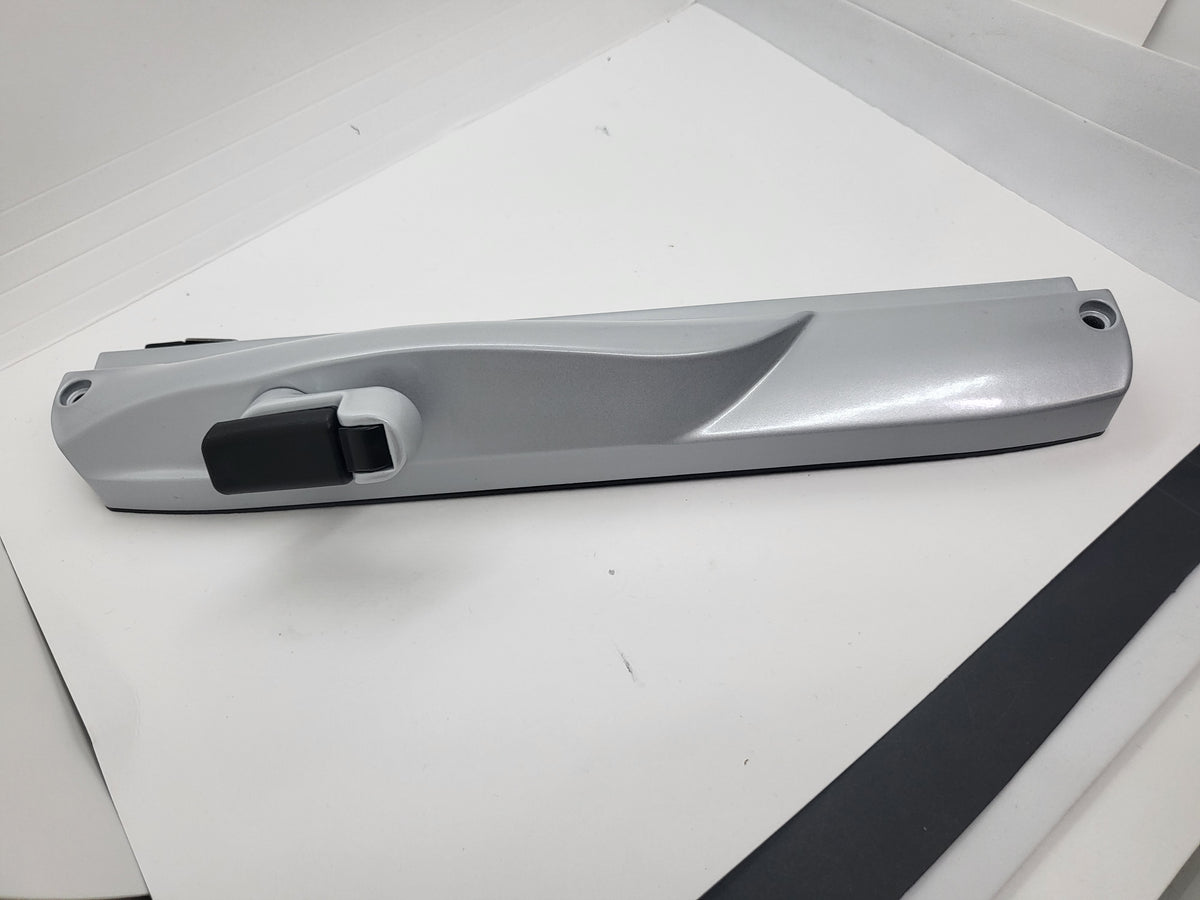

- SKU 2921 DS2 (non locking) SILVER GREY
SPECIAL order colours are available on request

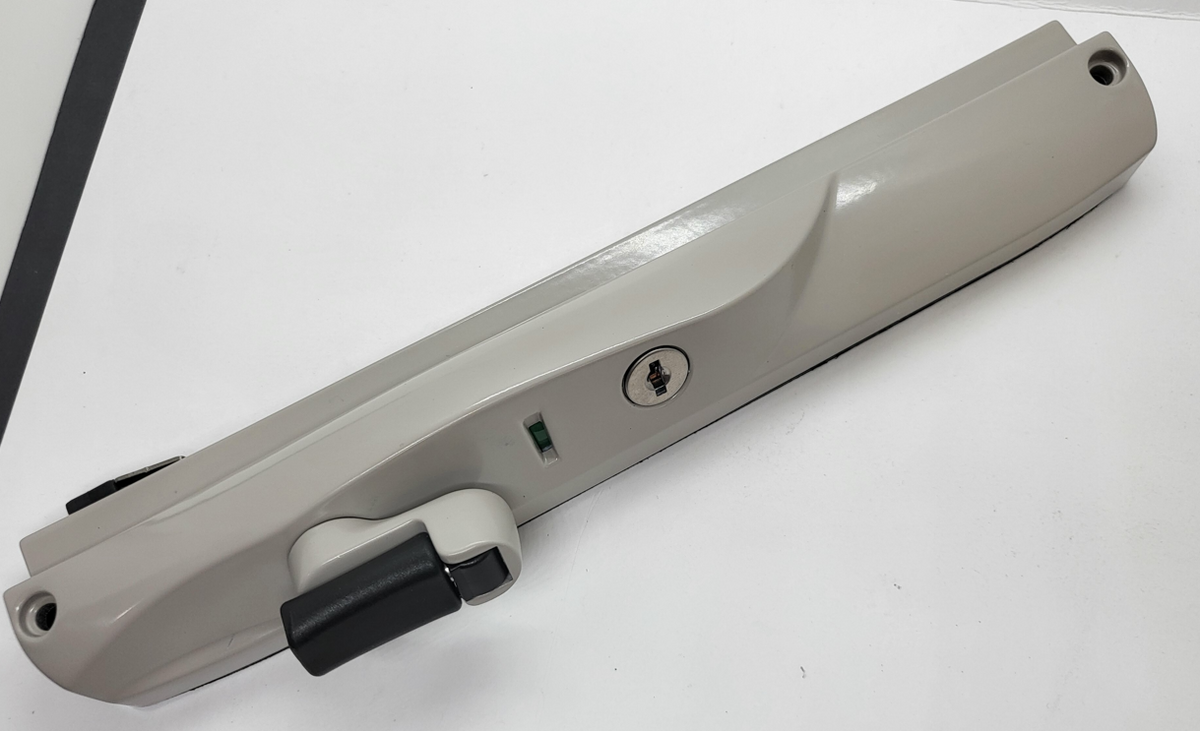

SPECIAL ORDER Silver - keyed
SPECIAL ORDER Dune - keyed
NOTES:
Other colours are a special order item (so please allow an additional 10-15 days for delivery) contact us for other available colours, costs and lead times

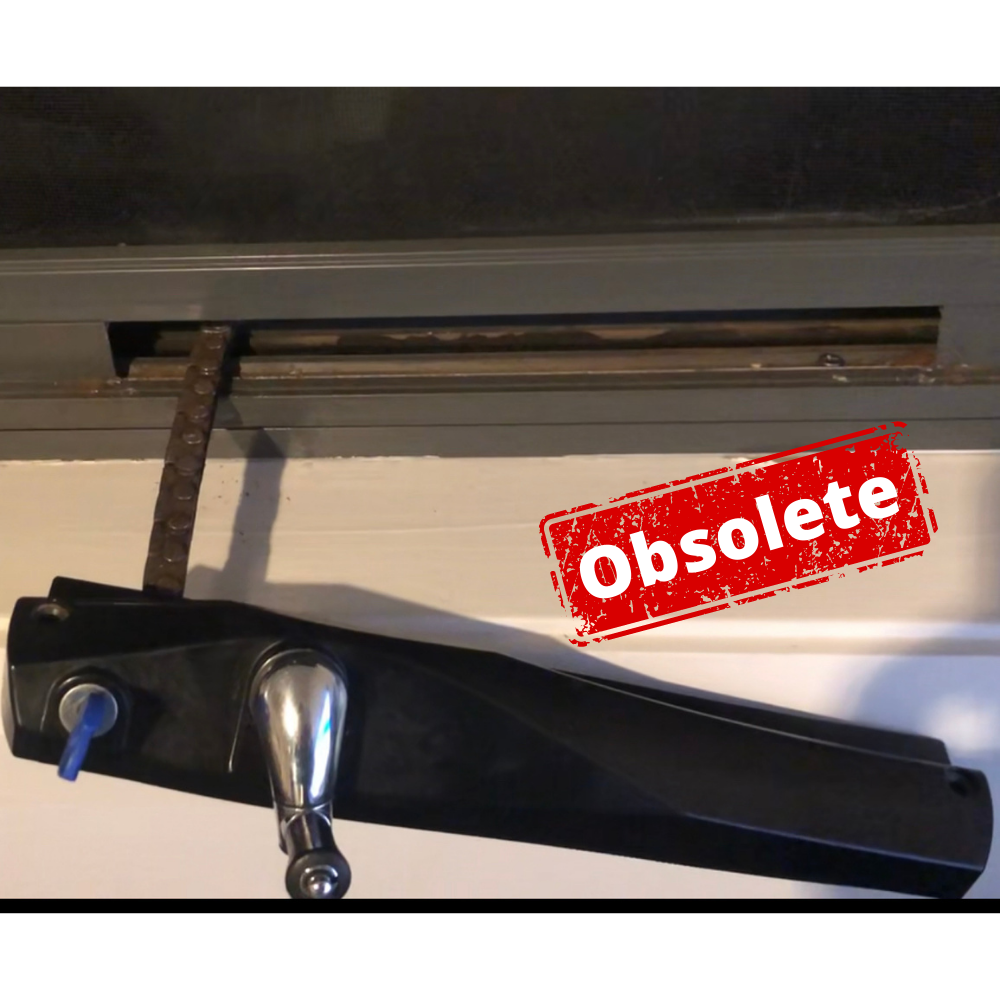

GALLERY image shows OBSOLETE DS1177 in situ (thanks to our customer) this is the old style which is now obsolete
-
