Window carriage and roller - suit Clearview windows - 3D Printed - Sold singly
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.
3D PRINTED Sliding window rollers to suit the old Clearview Aluminium sliding windows
Super strong, UV stable - industrial 3D printed using SLS technology
Sold singly (ADD number required)
OPTIONS:
-

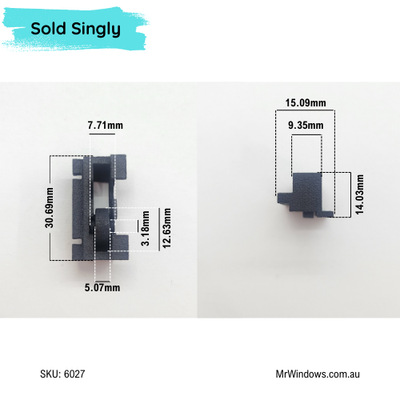

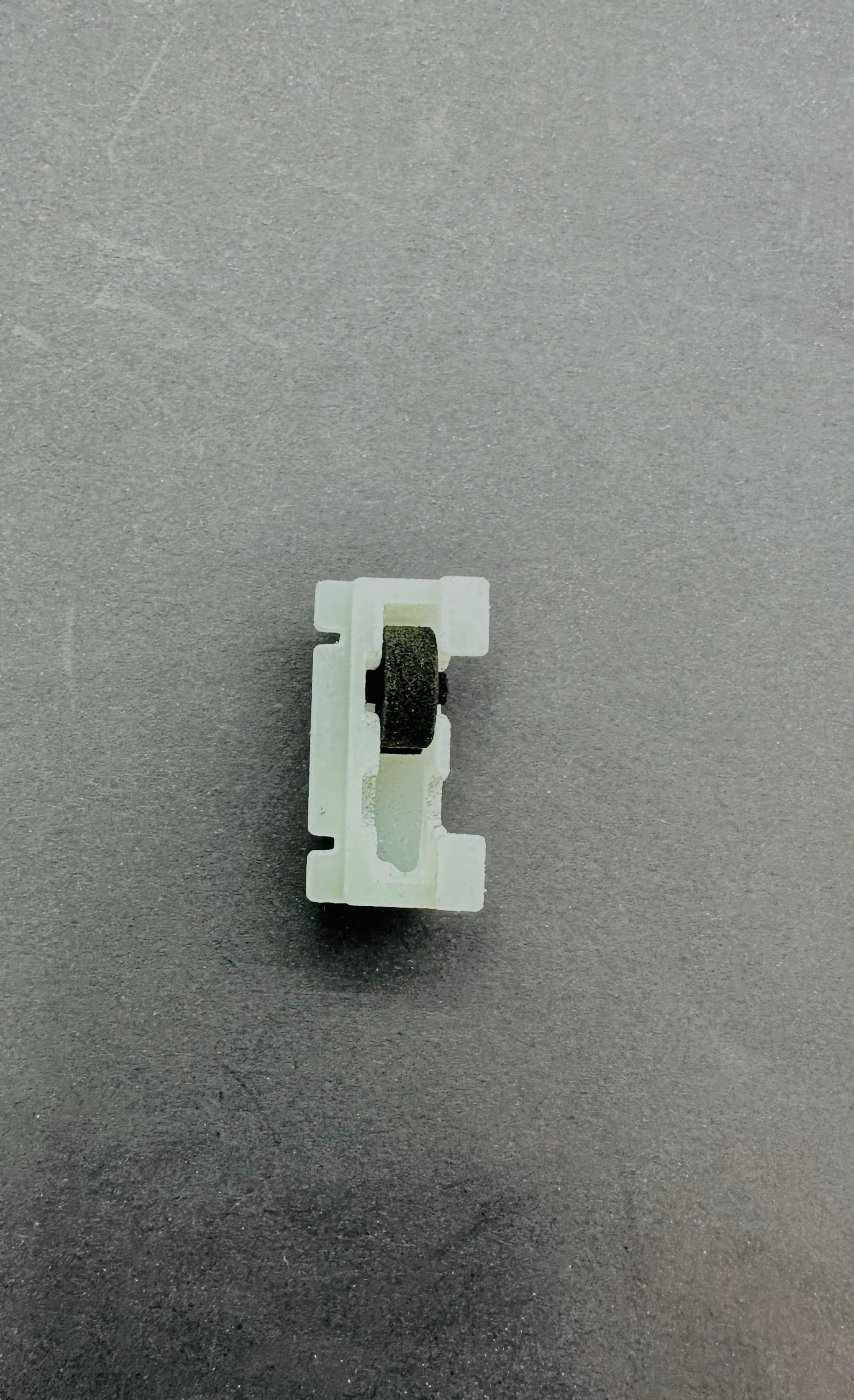

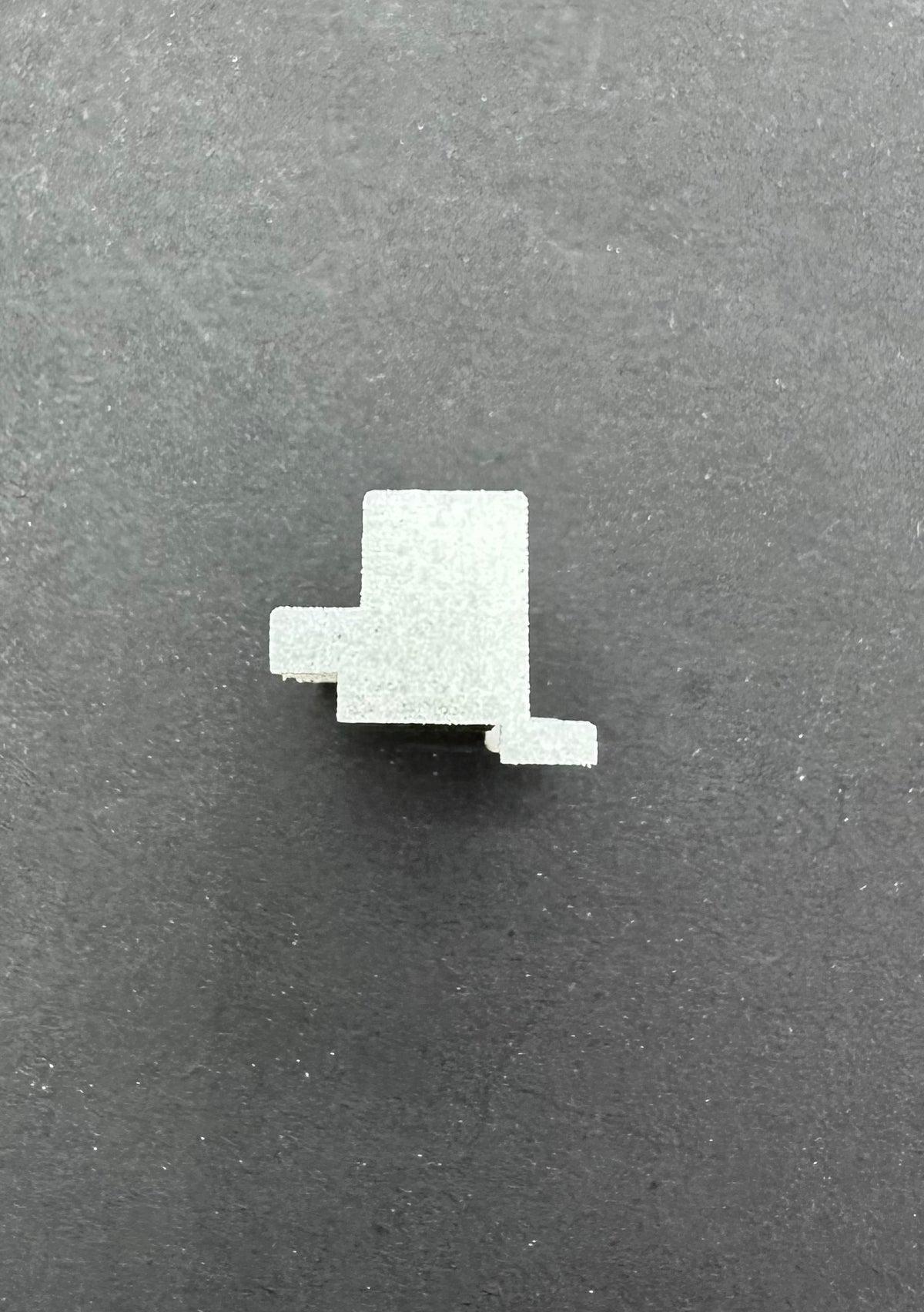

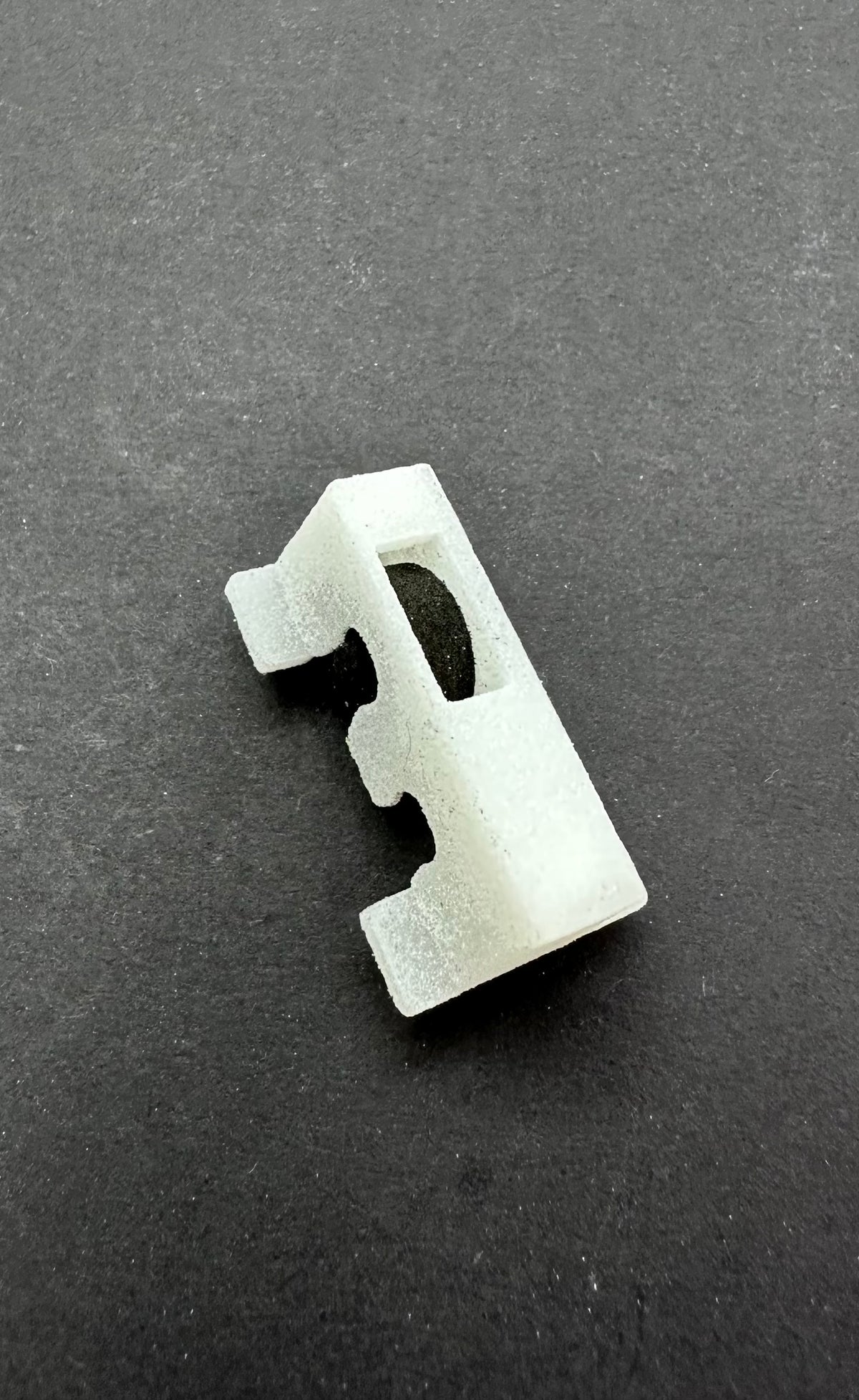

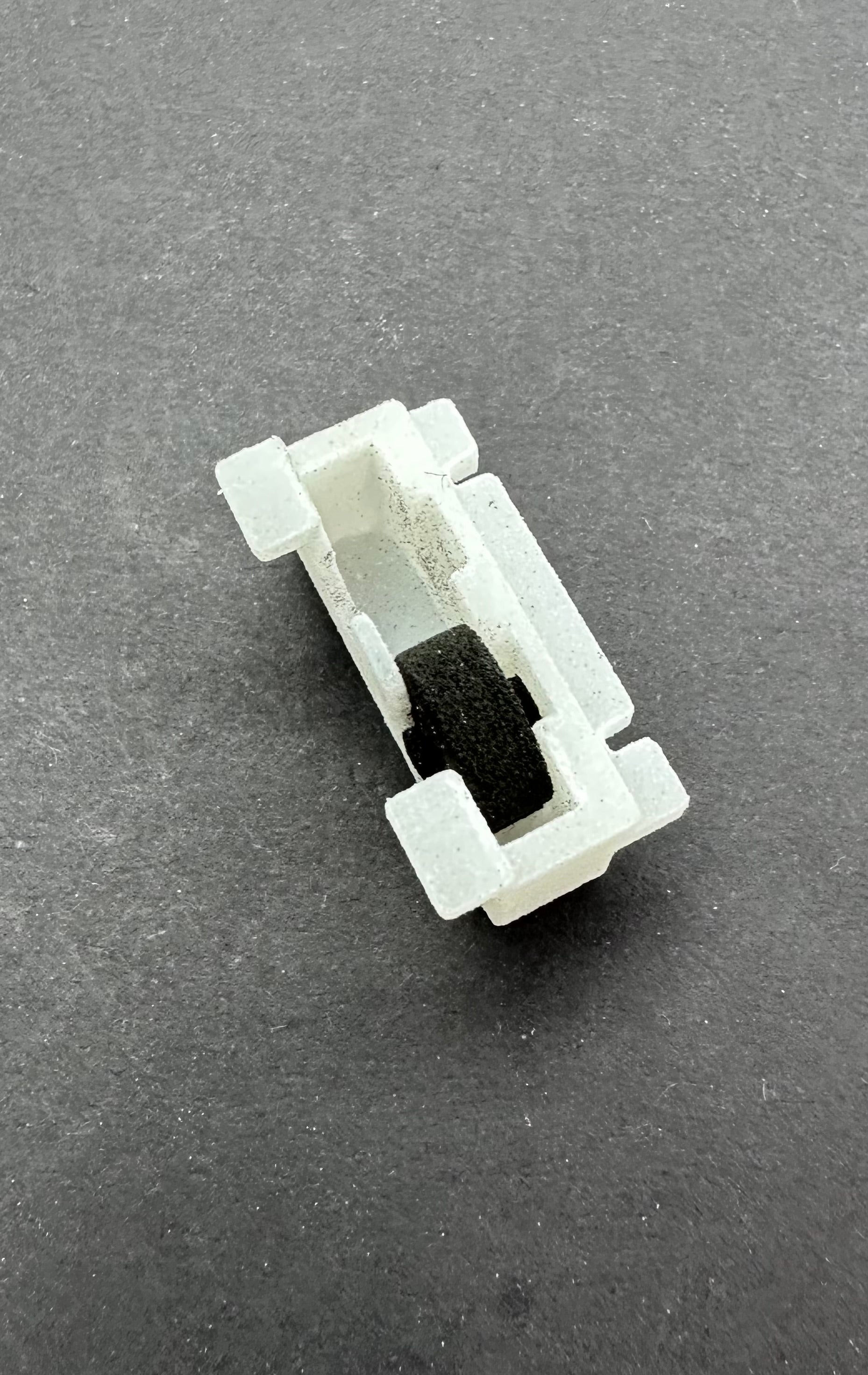

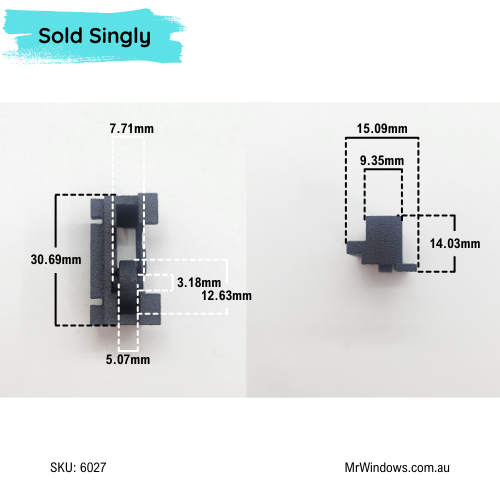

SKU 6027 - Carriage and roller complete
- DIMENSIONS:
- Carriage: 14.03mm Length x 30.69mm High x 9.35mm Wide (15.09mm Overall)
- Roller: 12.63mm Diameter x 5.07mm Width
- DIMENSIONS:
-

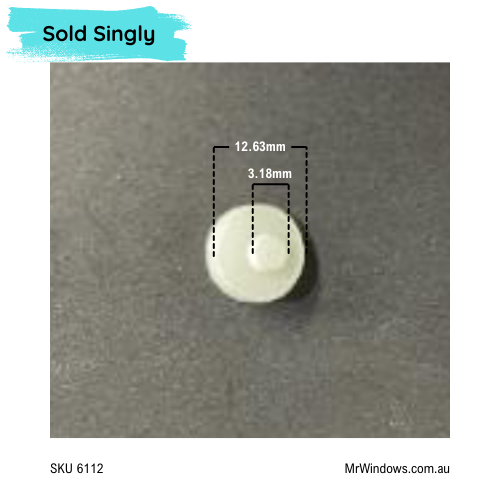

SKU 6112 - Roller only for original carriage
-
DIMENSIONS:

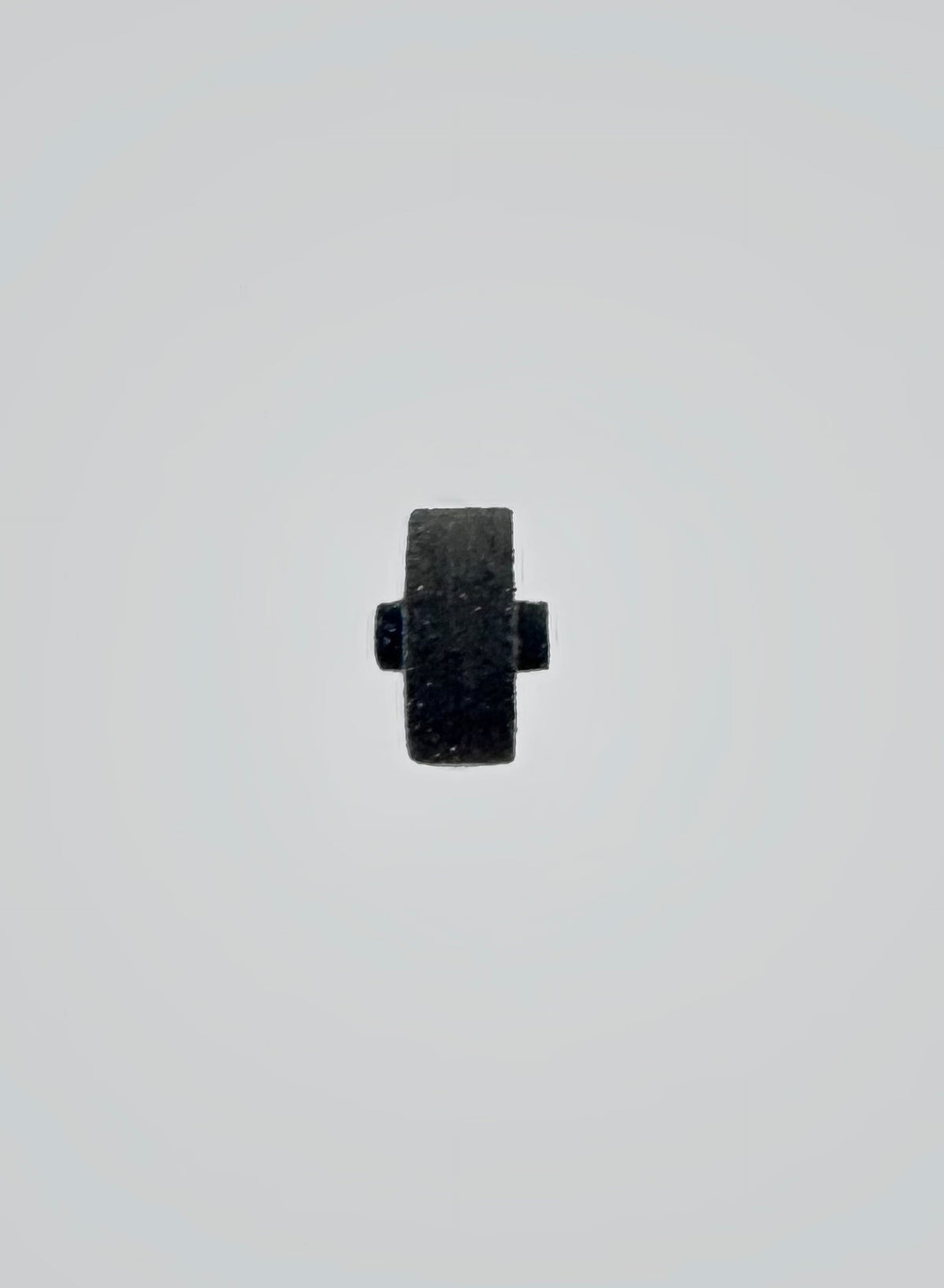

- Roller: 12.63mm Diameter x 5.07mm Width
- Axel: 3.18mm Diameter x 7.71mm Long
-
DIMENSIONS:
NOTES:
3D printed components using SLS print technology are not sealed and are supplied in the raw print form. 3D printed SLS products can easily be painted or dyed.
To paint: we recommend using White Knight - SQUIRTS which can be obtained from any good hardware store, this is a paint and primer and works really well on the 3D printed material.
To dye: we recommend Rit dyes which can be obtained from major supermarkets, ensure you following the directions for usage.
Once you have painted or dyed the product, to the colour you desire, then a clear sealant is recommended to protect the painted finish long term. By sealing you are also protecting the white print finish from soiling. We recommend Rust-oleum 2X clear spray which also can be obtained from major hardware suppliers.

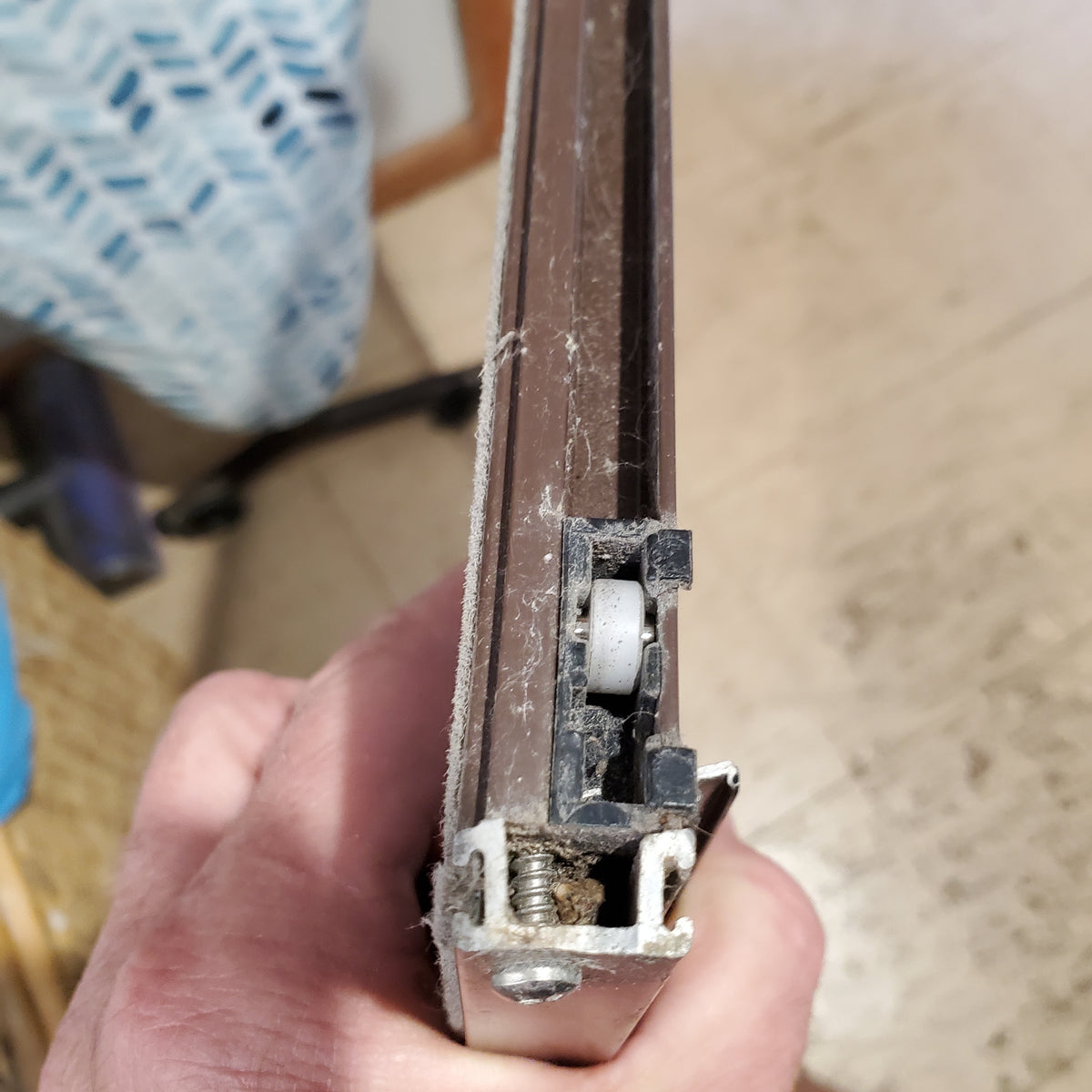

GALLERY image shows original roller in situ (thanks to our customer)
This is NOT a roller to suit Comalco window SEARCH SKU 6029 if you are looking for this style or brand
-
