COMMERCIAL Heavy Duty Sliding Door Roller
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.

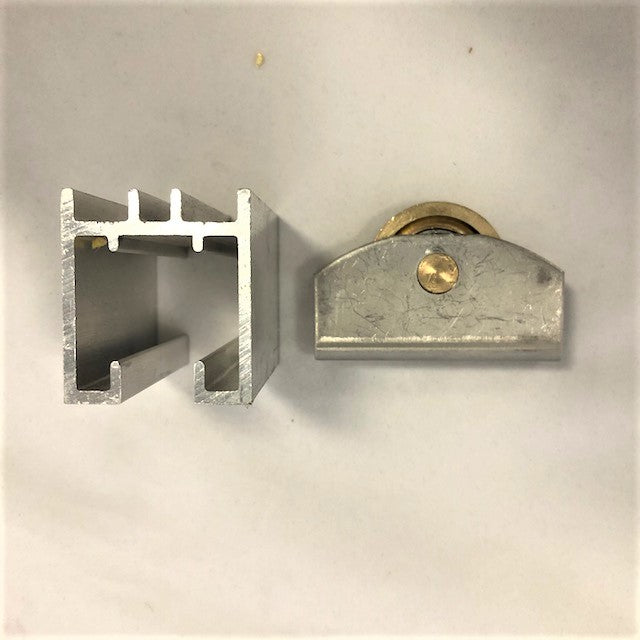

Cowdroy Commercial Glass Patio Door Roller Assembly – Heavy Duty Stainless Steel Housing & Wheel (TT65500). Heavy duty commercial aluminium carrier/housing to suit the old Capral 200 series door rail and brass carriage with brass roller - sold as 2 separate items
Restore smooth, effortless gliding to your heavy patio or commercial sliding doors.
When heavy commercial or residential sliding doors begin sticking, grinding, or dropping out of alignment, worn internal rollers are almost always the culprit. The Cowdroy TT65500 (3302400) Commercial Roller & Carriage Assembly is engineered for high-cycle, heavy-load applications where standard residential rollers fail.
Built with a corrosion-resistant grade 304 stainless steel carriage and a precision-bearing heavy-duty wheel, this unit supports substantial panel weights while resisting coastal moisture and track friction.
Key Features:
-
Direct Replacement: Matches original Cowdroy commercial specifications (Part # TT65500 / 3302400).
-
Heavy-Duty Load Capacity: Designed to support oversized glass panels, double glazing, and high-traffic commercial entries.
-
Corrosion-Resistant Housing: Marine-grade stainless steel body prevents rust and chassis twisting under load.
-
Adjustable Height: Easy-access screw adjustment lets you level and align your door panel without removing the entire door frame.
-
Dual Compatibility: Suitable for heavy residential glass patio doors, shopfronts, and commercial architectural suites.
Pro Tip: Always replace rollers in pairs. If one has worn down or seized, the second roller carries uneven weight and will fail shortly after.
OPTIONS:
-

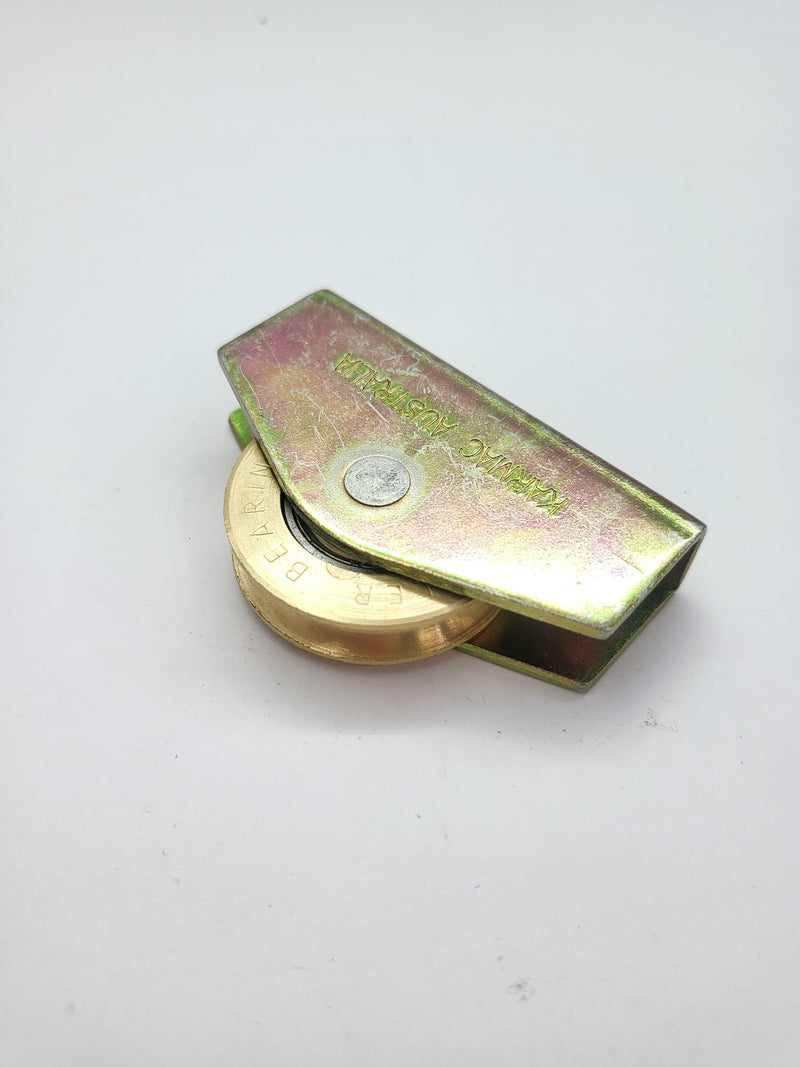

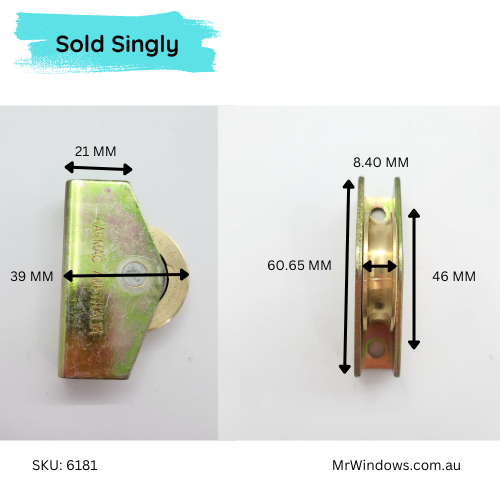

SKU 6181 ROLLER/CARRIAGE ONLY - 61mm long x 13.6mm wide x 39.5mm high
- load capacity - 227kg
- load capacity - 227kg

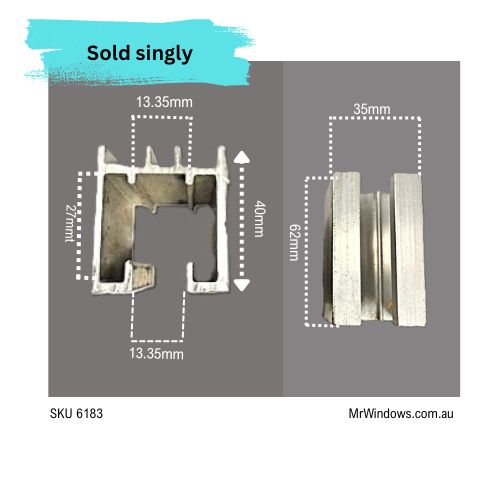

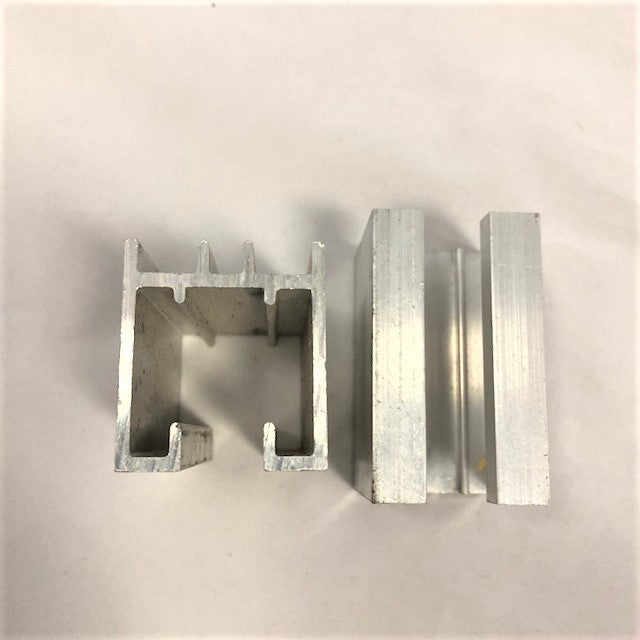

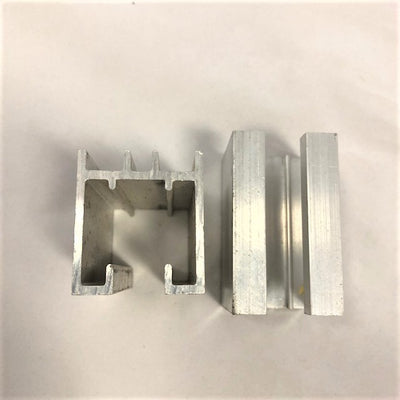

- SKU 6183 CARRIER/HOUSING ONLY - see attached diagram for detailed measurements - 40mm high x 35mm wide
| Specification | Detail |
| Dimensions | 61.2mm x 13.6mm x 32mm |
| Weight capacity | 113 kg per roller - 226kgs total door panel |
| Housing / Carriage Material | Stainless Steel (Corrosion Resistant)/Aluminium carrier |
| Roller / Wheel Material | Heavy-Duty Engineered Polymer / Steel Bearing |
| Roller Profile | Concave / Grooved (suits standard commercial raised track) |
| Adjustment Type | End / Side screw adjustment for door height levelling |
| Application | Commercial sliding doors, heavy glass patio doors, shopfronts |
| Unit Pack | Sold individually (replacement in pairs recommended) |
NOTES:

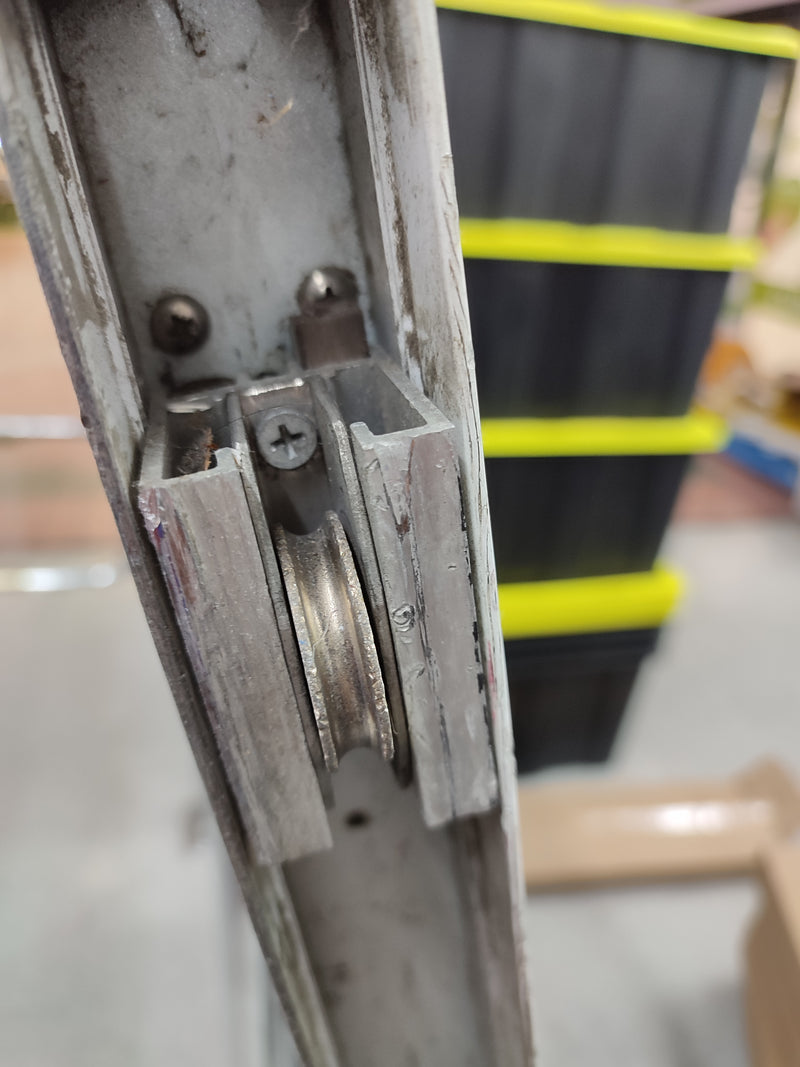

GALLERY image shows carriage + roller and carrier in place (thanks to our customer)
FAQ
Q. How do I know if the Cowdroy TT65500 will fit my sliding door?
The most reliable way is to compare your existing roller against the part number and dimensions. Remove your current roller and check for stamped codes like TT65500 or 3302400. If your carriage matches the outer dimensions, wheel profile, and mounting screw locations shown in our dimension guide, this unit will drop straight in.
Q. Should I replace both rollers at the same time?
Yes. Replacing only one roller forces the older, slightly worn wheel to bear uneven weight. Installing a fresh pair restores a level door posture, prevents track damage, and ensures smooth gliding for years to come.
Q. Does this carriage allow for height adjustment once installed?
Yes. The carriage features an integrated height-adjustment mechanism accessible via screwdriver. This allows you to square the door inside the frame and eliminate drafts or latch misalignment after installation.
