Universal Flyscreen Plunger Pins – Window Screen Retainer Clips (Pack Options)
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.
Keep your window insect screens firmly secured with these Universal Flyscreen Plunger Pins & Retaining Clips. Engineered as a direct replacement for brittle, worn, or broken original clips, they provide a simple, secure friction-lock fit that holds flyscreens tightly against the window frame.
Over time, sun exposure and general wear cause standard plastic screen clips to snap or lose grip, leading to loose, vibrating screens that let insects inside. These durable replacement pins slide or press into your aluminium screen frame, locking the screen into the window channel without complicated tools or mechanical parts to jam.
Key Benefits
-
Universal Compatibility: Fits standard residential and commercial aluminium flyscreen frame channels across major Australian window systems.
-
Firm, Reliable Hold: Keeps screen frames tight against the window reveal, stopping screen rattle in windy conditions and closing off gaps where bugs enter.
-
UV-Stabilised Durability: Moulded from high-grade, impact-resistant polymer built to withstand continuous sun and temperature fluctuations without turning brittle.
-
Simple DIY Installation: Quick push-in replacement—remove the old broken clip and press the new pin into the frame channel in seconds.
| Attribute | Specification |
| Product Type | Flyscreen Plunger Pin / Screen Retainer Clip |
| Fixing Method | Manual push/friction-lock pin |
| Sold | Sold in a pack of 10 |
| Material | UV-stabilised industrial polymer |
| Suitability | Standard aluminium flyscreen frames for timimer or aluminium windows |
| Function | Secures insect screens into the window frame reveal for awning, casement and double hung windows |
| Installation | Push-fit / friction-fit into frame extrusion |
| Suits | Capral, Stegbar, G James, Trend and other frames |
| Dimensions: |
|
NOTES:
LOOKING for plunger pins for Airlite or Stegbar windows SEARCH SKU 9079 HERE they are made longer
DRILL BIT AND MEASUREMENT GUIDE FOR INSTALLATION
-

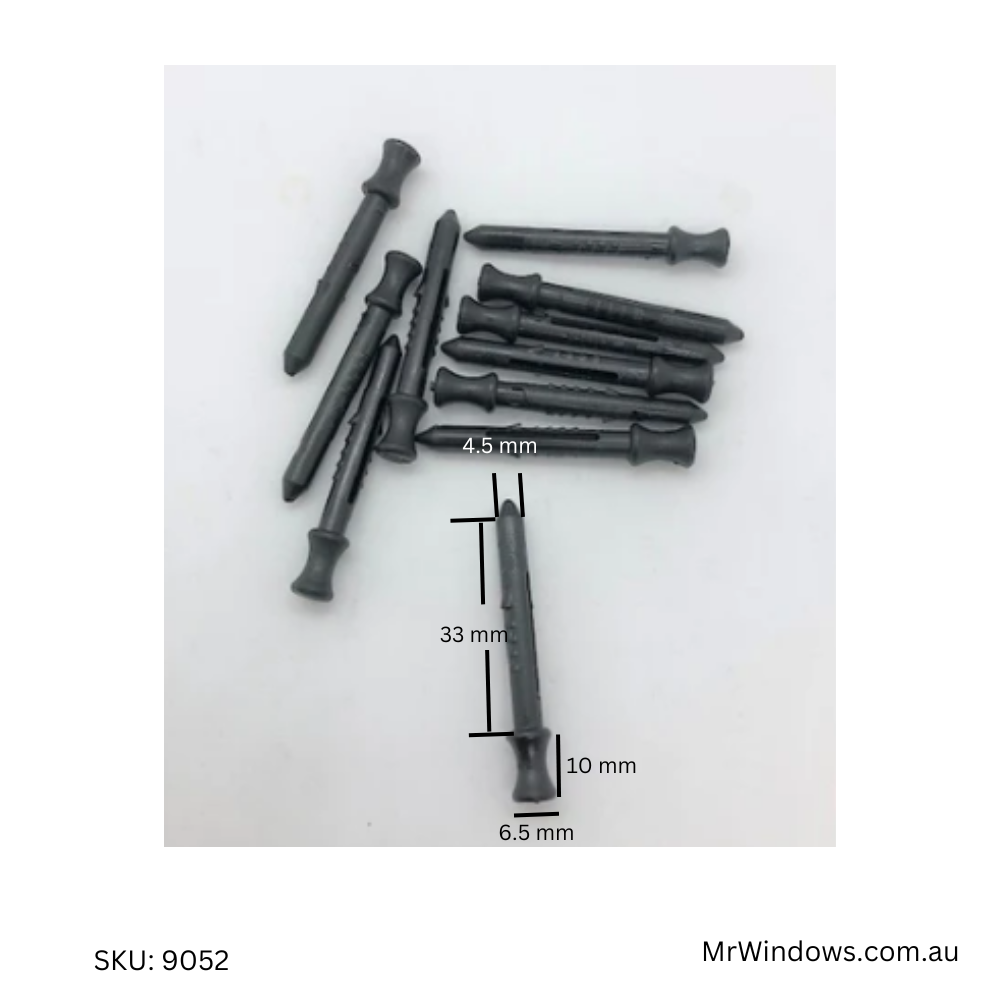

Head: 10 mm length × 6.5 mm diameter
-
Stake (Pin Shaft): 33 mm length × 4.5 mm diameter
-
Total Length: 43 mm
Use the exact drill specifications and placement measurements below to achieve a factory-tight, rattle-free fit.
Drill Bit Diameters
| Location | Recommended Bit Size | Functional Purpose |
| Screen Frame Wall | 4.8 mm (3/16″) | Gives +0.3 mm clearance over the 4.5 mm stake. The pin moves smoothly by hand without sloppiness, while the 6.5 mm head cannot pull through. |
| Window Track / Frame | 5.0 mm (or up to 5.5 mm) | Catches the 4.5 mm pin tip securely. A 5.0 mm hole provides a rattle-free lock; sizing up to 5.5 mm allows 1 mm of alignment tolerance across multiple pins. |
FAQ
Q. How do these non-spring plunger clips hold the screen in place?
These clips work on a secure push-and-catch system. Once fitted into the perimeter channel of your aluminium screen frame, the pin manually extends into the window frame track, creating a snug friction hold that keeps the screen firmly anchored against wind and movement.
Q. How do I install or replace a broken flyscreen plunger pin?
Installation requires no specialized tools. Pry out the remnants of the old, broken clip using needle-nose pliers or a small flathead screwdriver. Align the new plunger clip with the frame's existing slot or pre-drilled hole, and press firmly until it seats flush inside the frame extrusion.
Q. Are these clips compatible with my window brand?
Yes. These pins are designed to standard dimensions used across major Australian residential window profiles. If your screen frame uses standard push-fit side retainers to lock into the outer aluminium track, these clips provide a direct replacement fit.
