Q-Lon Foam Weatherstrip Seal for Timber & Aluminium Windows and Doors | per meter or ROLL
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.
Restore draft-free comfort, acoustic dampening, and weatherproofing to your windows and doors.

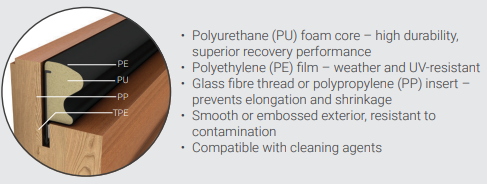

Genuine Q-Lon polyurethane foam seals are engineered specifically for demanding Australian weather conditions. Featuring an embossed polyethylene skin and a resilient open-cell foam core, Q-Lon delivers exceptional thermal insulation and acoustic performance without stiffening in winter or degrading under intense UV exposure.
Designed with an integrated barbed mounting foot, this seal presses securely into standard routed timber grooves (kerf slots) or compatible aluminium extrusions—preventing drafts, rain ingress, dust, and rattling sashes.
Key Attributes
-
Superior Compression Recovery: Returns to 99% of its original memory after years of door and window closures—no permanent flattening.
-
UV & Weather Resistant: Exterior PE barrier repels water, rot, mould, and intense sunlight without cracking or chalking.
-
Thermal & Acoustic Insulation: Significantly lowers draft heat loss and dampens outside street noise.
-
Low Closing Force: Compresses smoothly, ensuring doors and casement windows latch easily without excessive slamming.
-
Cut to Length: Sold per continuous metre to minimise waste on small maintenance jobs or complete home retrofits, or as a full roll for the Trade customer.
Technical Specifications
| Feature | Specification |
| Material Core | Resilient open-cell polyurethane (PU) foam |
| Outer Skin | UV-stabilised, embossed polyethylene (PE) barrier |
| Backing / Insert Foot | Rigid polypropylene base with barbed retention fin |

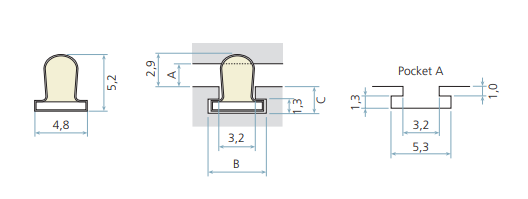

| Mounting Groove (Kerf) | Fits standard 2.7 mm – 3.2 mm kerf slot width; min. depth 5.5 mm |
| Operating Compression | Recommended 25% – 50% deflection for optimal weather seal |
| Temperature Tolerance | -40°C to +70°C |
| Application | Casement windows, awning sashes, entry doors, French doors |
| Compatibility | Timber rebates, routed kerfs, and select aluminium suite channels |
| Unit of Sale | Sold per linear metre (continuous length where possible) |
OPTIONS:
- SKU 1500 - QL4850 - seal gap 1.10 minimum 2.40 maximum; Groove width 3.20mm mm; Groove width max 5.30 mm
- SKU 1500R - QL4850 - sold as a full 900m roll
NOTES:
GALLERY image shows full roll - available if required - please contact us
FAQ
Q. How do I install or replace this Q-Lon foam seal?
A. Installation requires no adhesives or fasteners. Simply pull the old, worn-out seal out of the routed channel (kerf slot) around your frame. Clean any loose debris or dirt from the groove, then press the rigid barbed foot of the new Q-Lon seal into the slot using your fingers or a dull, flat-edged roller tool until seated flush.
Q. How do I know if this seal fits my window or door?
A. Inspect your current frame to confirm it has a narrow channel or slot (a kerf groove roughly 2.7 mm to 3 mm wide). If your existing seal features a rigid back fin pushed into a wooden rebate or aluminium pocket rather than being stuck on with adhesive tape, this Q-Lon profile is typically the direct replacement.
Q. Can I order one continuous length for multiple windows?
A. Yes. This product is sold per metre. If you enter a quantity of 6, you will receive one continuous 6-metre piece. You can easily cut it to exact sash and frame dimensions on-site using standard sharp shears or a utility knife at 45° or 90° corner joints.
