SPECIAL ORDER Lockwood Optimum sliding door mortice lock - 30mm backset
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.

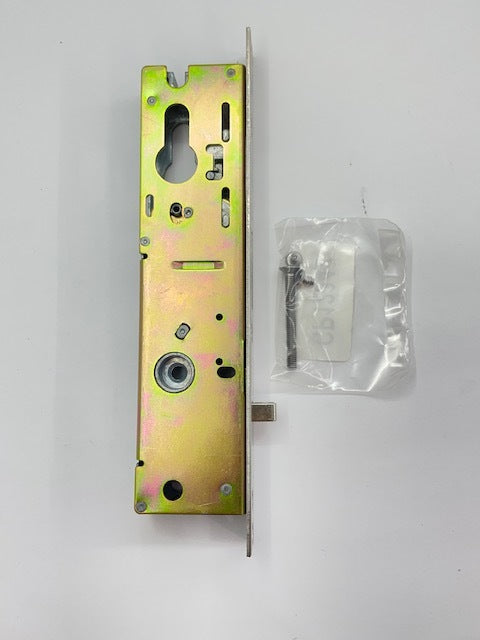

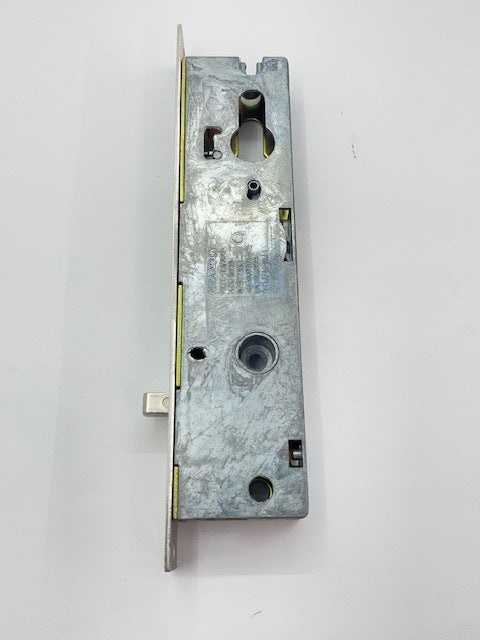

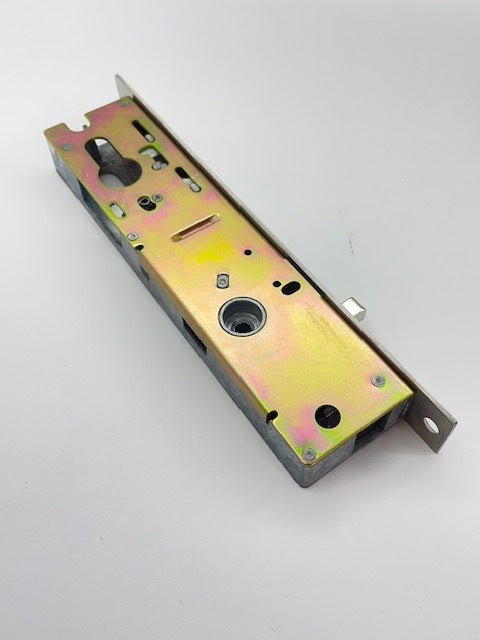

Lockwood Optimum Sliding Door Mortice Lock - OP30/1SDN/SS - mortice lock body only. SPECIAL ORDER ITEM, not held in stock
Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted
Features:
- Designed to improve functionality in sliding door applications. Lock features the unique security of a single deadbolt with dual flyout beaks which prevent the door from being lifted.
- Anti-lift deadbolt locking
- Anti-slam pin protection prevents accidental damage to the lock bolt
- Durable mechanism and stainless steel faceplate
- 30mm and 40mm backset variants available
- Door thickness: 32mm to 45mm
- Lock Status Indication available when used with Palladium Xtra cylinder escutcheons
- Lock Status Indicators
Specifications:

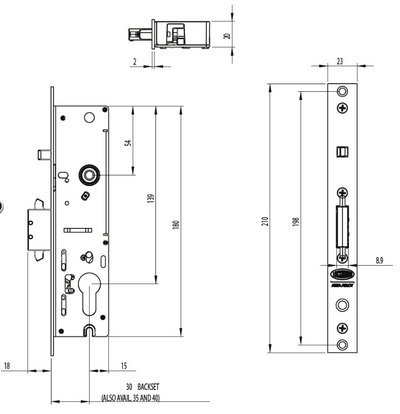

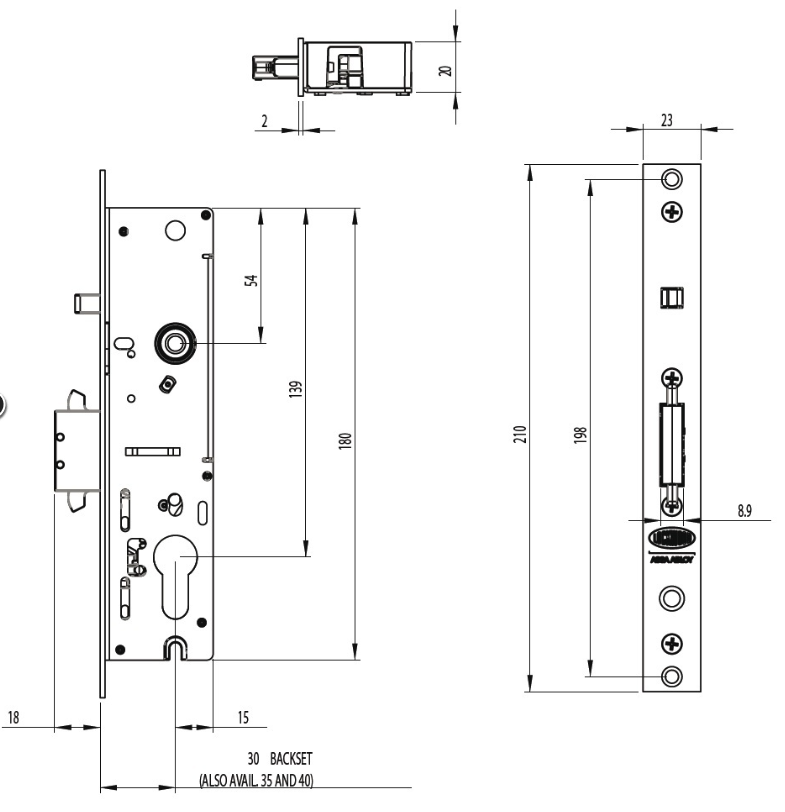

- Backset: 30mm
- Can be Master Keyed or Keyed Alike: Yes
- Keyway: C4 5Pin or 6 Pin
- Material: Composite
- Spindle Size: 7.6mm or 8mm
- Door Thickness: 32mm to 45mm
- Finish: Satin Stainless Steel
-
