Parliament hinges - SPECIAL ORDER PRODUCT - wide throw
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.

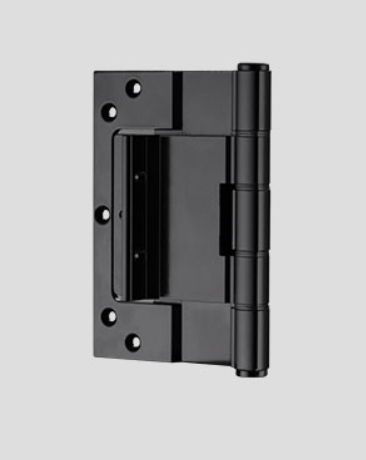

This is a special order product - not held in stock - A172 Aluminium Parliament Wide Throw Interfold Hinge. 120mm throw allows the door to swing clear of Architraves, wall reveals, etc

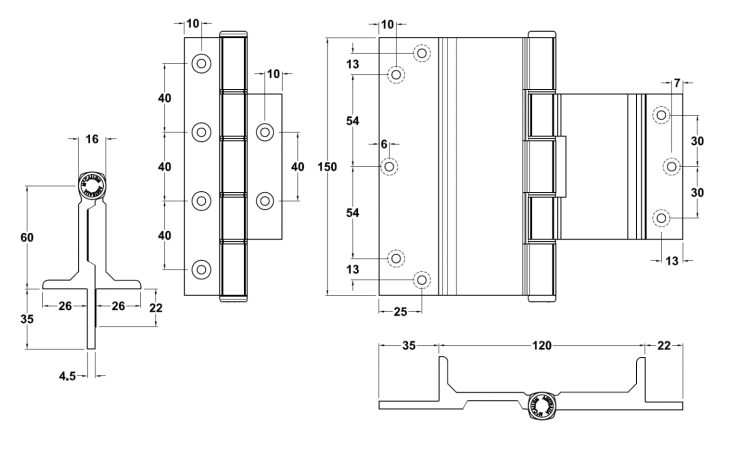

Dimensions: 150mm x 35mm x 4.5mm - non-handed
Wrap-around face fixing to door & frame
Suitable for Commercial Aluminium & some Timber doors
Suitable for either Centre Pocket or Front Edged Glazing systems
Hinge positioning locator allows for faster & easier installation
Suits door weight up to 80kg x 40mm door thickness
Material: High Strength Aluminium Alloy T6 min tensile 254 mpa - Hinge pin 6mm Stainless Steel 304 Grade
Fixing: Fastening screws supplied - aluminium fixings - 10G x 12mm, 304SS, undercut countersunk self-tapping Phillips drive screw. Pop Rivets are NOT RECOMMENDED
FINISH OPTIONS available on special order:
• Satin Natural Anodised
• Black Powder Coat
• White Powder Coat
NOTES:
This stock is not held on hand - please contact the team for current lead time and pricing
-
