Sylon Domestic Top Hung Sliding Timber Door Roller Replacement | 41mm x 13mm Wheel (3/8" Threaded Shaft)
Couldn't load pickup availability
-
We guarantee next day shipping on all stocked items.
-
To help you find the right part for the job, with our team's assistance in ID and sourcing.
-
To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.
Key Attributes
Direct Compatibility: Purpose-built replacement roller assembly for vintage/retro Sylon Domestic top-hung timber interior and patio sliding doors.
-
Exact Wheel Dimensions: Heavy-duty concave/grooved wheel measuring 41mm outer diameter x 13mm tread width.
-
Mounting Specifications: 3/8" imperial threaded shaft with 7mm hub depth and 15mm insertion projection for direct fit into existing door brackets.
-
Smooth, Quiet Glide: Fitted with an internal steel ball-bearing core engineered to support heavy solid-core timber doors without squeaking or binding.
-
DIY Installation: Direct screw-in replacement; installs in minutes using standard hand tools without modifying original top tracks.
Stop struggling with sticking, derailed, or noisy timber sliding doors.
If your home features original Sylon Domestic top-hung sliding doors, finding an exact hardware match can be frustrating. Modern rollers rarely match the original track profiles or threaded bracket depths of legacy systems.
This precision-machined replacement roller assembly is engineered specifically to restore legacy Sylon systems to smooth, effortless operation—without the expense of replacing your existing track or door frame.
Technical Specifications:
-
Wheel Diameter: 41mm
-
Wheel Width: 13mm
-
Wheel Profile: Concave / Center Grooved (Suits original overhead Sylon track profile)
-
Shaft Thread: 3/8" BSW / UNC standard threaded stud
-
Hub Diameter: 7mm
-
Projection / Standoff: 15mm from wheel face to mounting shoulder
-
Core: Sealed low-friction steel bearing
-
Recommended Application: Internal room dividers, cavity sliders, and top-hung solid timber doors - Rated to a maximum load of 40kgs per roll (80kg door panel)
- Sold: Sold singly (ADD number required)
NOTES:
GALLERY image shows obsolete unit

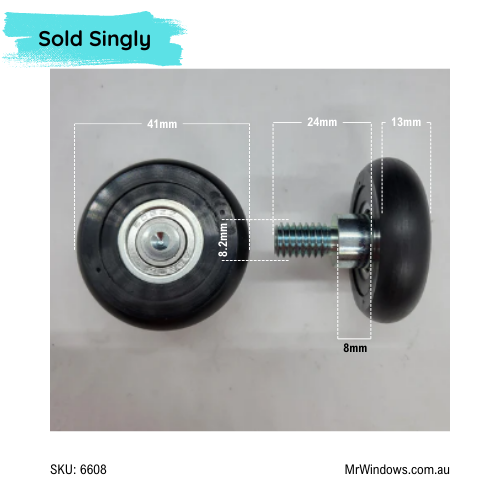

Measure Twice, Order Once: Before purchasing, please remove your existing roller and verify your measurements against our dimension diagram. Roller diameters wear down over decades; if your old worn wheel measures roughly 39mm–41mm with a 3/8" threaded mounting bolt, this is the correct direct replacement.
FAQ
Q. How do I know if this roller will fit my existing door?
This roller is designed specifically for vintage Sylon Domestic top-hung systems. To confirm fit, check three key measurements:
-
The wheel diameter should be approximately 41mm (worn wheels may measure 39–40mm).
-
The wheel thickness should be 13mm.
-
The mounting bolt must be a 3/8" threaded shaft. If your track is bottom-mounted or uses a clip-in pin rather than a threaded bolt, this roller will not fit.
Q. Should I replace sliding door rollers individually or in pairs?
We strongly recommend replacing all rollers on the door at the same time. If one roller has worn out or seized, the second roller has endured identical wear and will cause uneven door weight distribution, track binding, or premature failure if left unchanged.
Q. Does this include the mounting nut and top bracket?
This listing includes the complete roller wheel and integrated threaded shaft assembly. It is designed to thread directly into your existing door-top hanger bracket. Retain your existing locking nuts and bracket hardware during removal.
