Austral Yarra Ridge Sliding Patio Door Lock (Single Lockset) | Ausloc

In stock - 6 items available
SKU: 4077
Surface mounted sliding door lock
Easy DIY change-over
Held in stock keyed alike
Regular price $62.00 inc GST
OPTIONS
MR. WINDOWS Promise
  • We guarantee next day shipping on all stocked items.

  • To help you find the right part for the job, with our team's assistance in ID and sourcing.

  • To supply only top-quality, tried-and-tested products, supporting Australian businesses with locally manufactured, assembled, and designed items.

Austral Yarra Ridge Sliding Patio Door Lock (Single Lockset) | Ausloc

Upgrade or replace your patio door hardware with the industry-trusted - Austral Yarra Ridge Sliding Door Lock.

Designed for residential sliding glass and aluminium doors, the Yarra Ridge series combines sleek, ergonomic styling with robust home security.

Key Features:-

  • GENUINE AUSTRAL / AUSLOC QUALITY: Authentic Austral Yarra Ridge sliding door lockset engineered specifically for Australian residential sliding glass, aluminium, and timber patio doors.

  • SECURE SINGLE-CYLINDER DESIGN: Key-lockable from the outside via a standard Australian C4 broach 5-pin cylinder (2 keys included) with an intuitive interior snib lever for quick privacy latching.

  • UNIVERSAL NON-HANDED FIT: Fully reversible design installs easily on both left-handed and right-handed sliding doors; direct drop-in replacement for standard Austral and industry cutouts.

  • LOW-PROFILE ERGONOMIC PULL: Sleek, low-clearance handle profile operates smoothly without catching or interfering with internal blinds, curtains, or external security flyscreens.

  • CORROSION-RESISTANT COMPLETE KIT: Built from heavy-duty cast metal with a weather-resistant finish; includes interior and exterior handles, cylinder, 2 keys, spindle, and all required mounting fixings.

What’s Included:  1 × Austral Yarra Ridge Exterior Pull / Cylinder Escutcheon; 1 × Austral Yarra Ridge Interior Snib / Handle;  2 × C4 Profile Brass Keys;  Mounting Screws, Spindle & Fixings;  Installation Template & Instructions

Specifications/Brand / Series: Austral Lock / Yarra Ridge (Ausloc)

  • Lock Type: Surface mounted Sliding Patio Door Handle & Lock Set (Single Cylinder)
  • Door Material Compatibility: Aluminium, Timber, uPVC
  • Operation: Keyed outside, snib lever inside
  • Design: Increased knuckle clearance between the key and jamb by the 'set-back' cylinder
  • Functionality: Self adjusting catch plate to compensate for roller wear, with Anti-slam plunger protects the lock from self damage by preventing the beaks from extending until the door is closed
  • HELD keyed alike in stock, includes 16mm strike

OPTIONS

  • SKU 4073- (16mm strike) Full Handle kit (Int/Ext) key locking
  • SKU 4075- (25mm strike) Full Handle kit (Int/Ext) (non-key locking)
  • SKU 4076- (16mm strike) Full Handle kit (Int/Ext) (non-key locking)
  • SKU 4077- 16mm External handle only

FITTING INSTRUCTIONS

NOTES

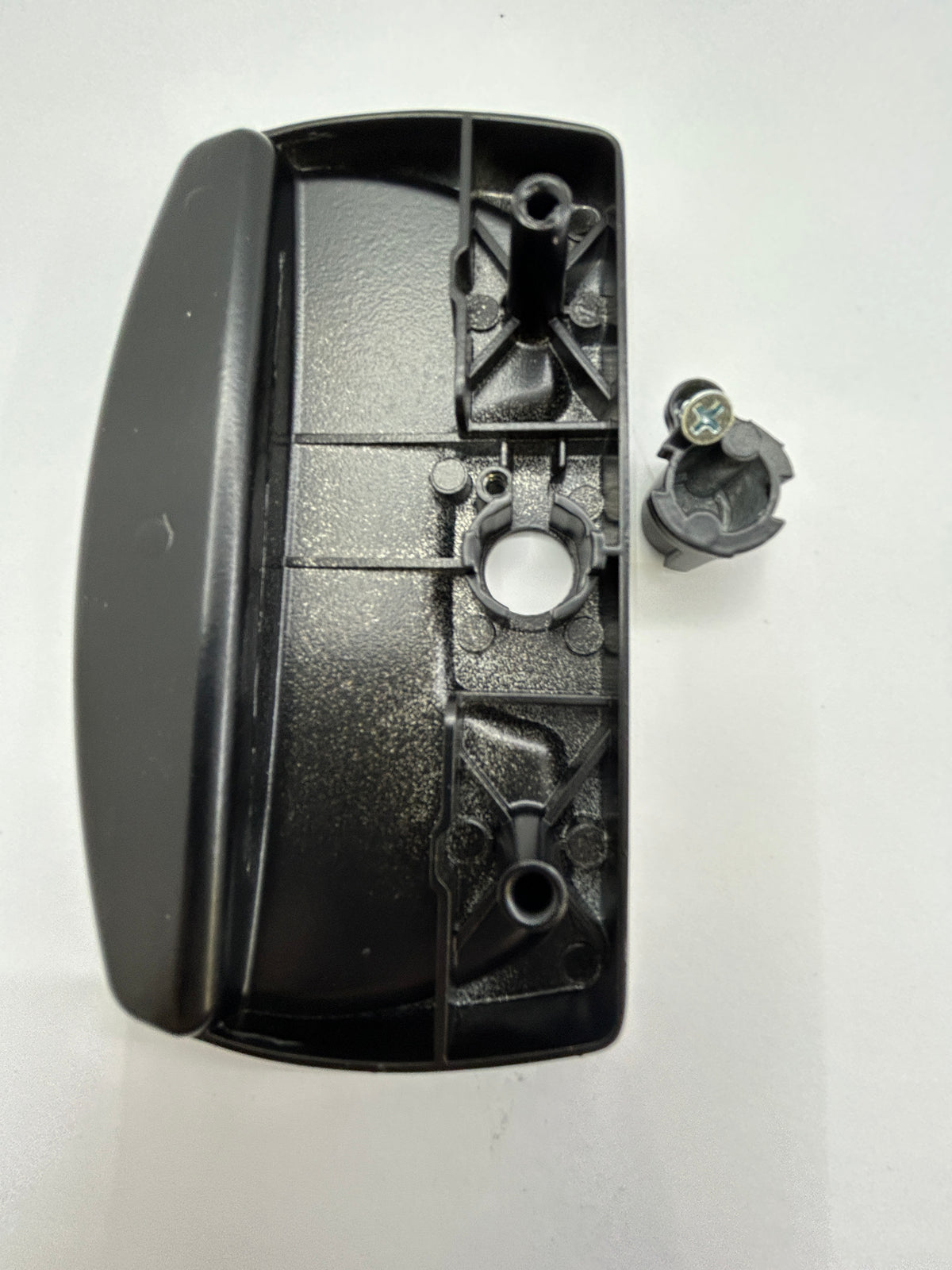

Plugs are removed from the handles to achieve a keyed installation. See images in the gallery
