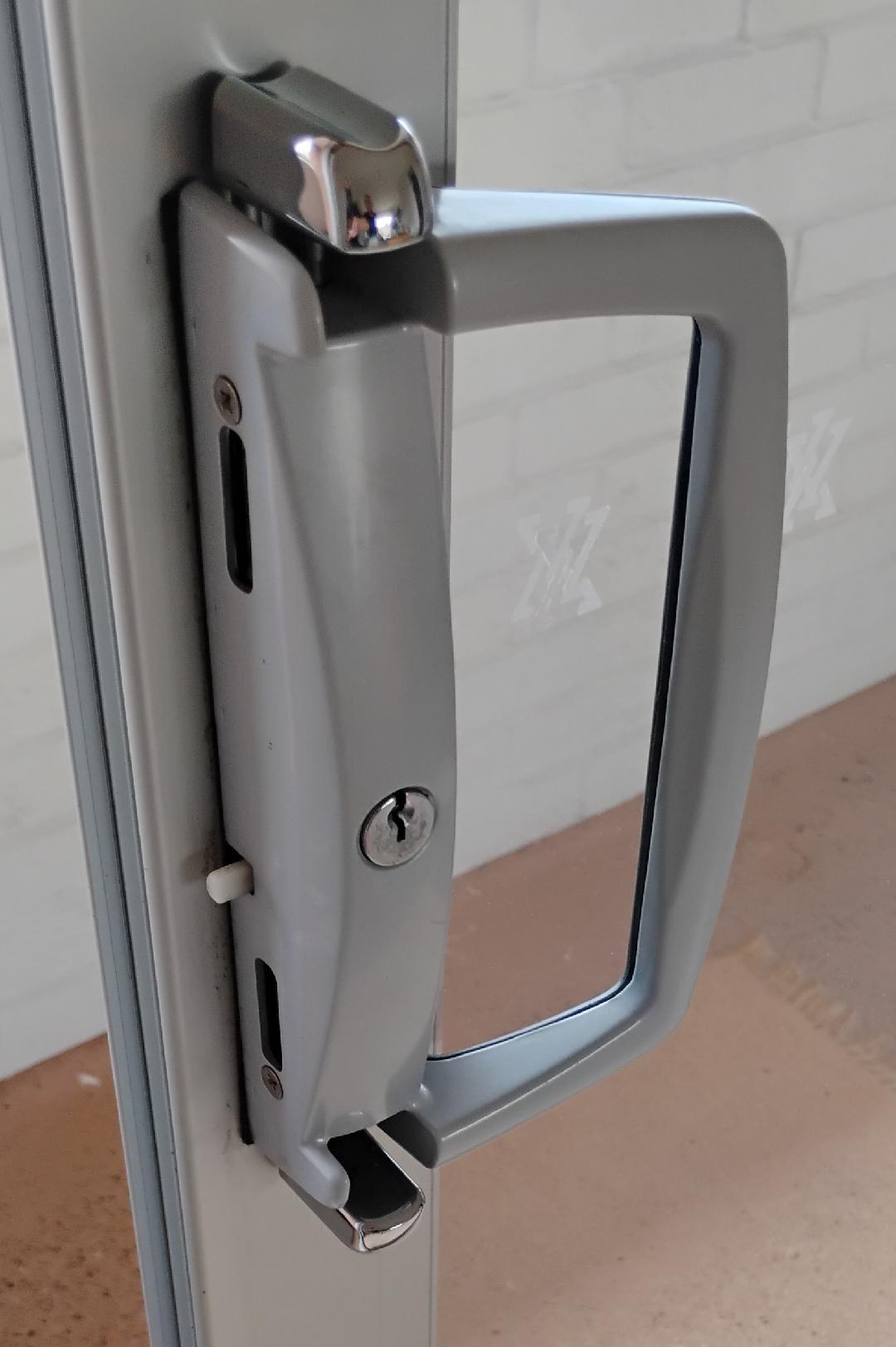

Restore security and smooth operation to your patio entrance with the Timbara Surface-Mounted Sliding Door Lock & Latch.
Designed as an easy retrofit solution for worn, broken, or outdated patio hardware, this heavy-duty latch mounts directly onto the door frame surface without requiring deep mortise cuts. Crafted from corrosion-resistant zinc die-cast alloy, it offers smooth lever/snib actuation alongside reliable latching security against unauthorized entry.
Key Features:
Surface-Mount Design: Fast, non-destructive installation suitable for both DIYers and professional handypeople.
Reversible Handing: Fits effortlessly on both left-hand and right-hand opening sliding doors.
Durable Construction: Built from weather-resistant alloy to resist corrosion and everyday wear.
Direct Replacement: Directly replaces common older-style Timbara and generic surface patio latches.
Specifications
| Attribute | Specification |
| Brand / Model | Timbara Style Surface-Mounted Latch |
| Material | Heavy-duty Die-Cast Zinc Alloy |
| Mounting Type | Surface-mounted (Face-fixed) |
| Fixing Hole Centers | Standard spacing (e.g., 82mm / 108mm – specify exact mm) |
| Handing | Fully reversible (Left or Right-hand slide) |
| Locking Mechanism | Snib toggle (Interior) / Key deadlock (specify if cylinder included) |
| Door Compatibility | Aluminum, timber, and vinyl/UPVC sliding patio doors |
| Finish Options | Black Powder Coat, White, or Satin Silver |
| Inclusions | Internal latch handle, keeper/strike plate, mounting screws |
Suitability & Compatibility Guide
-
Suitable For:
-
Residential aluminum, timber, and composite sliding patio doors.
-
Standard glass sliding doors requiring a surface-fixed latch rather than a concealed mortise lock.
-
Direct replacements for legacy Timbara, Whitco, or generic surface patio handles sharing identical screw-hole centers.
-
-
Not Suitable For:
-
Flush-mount mortise-style sliding systems (where the locking mechanism sits embedded inside the door stile).
-
Frameless, all-glass sliding panels without an aluminum or wood perimeter frame.
-
Heavy commercial automatic sliding doors.
-
Dimension / FeatureMeasurement / DetailNotes
| Dimension / Spec | Measurement | Fitment & Measurement Guide |
| Screw Hole Centres | 82 mm | Distance measured centre-to-centre between the two fixing screws |
| Total Handle Height | 212 mm | Full top-to-bottom length of the handle plate |
| Handle Body Width | 38 mm | Narrow profile designed to fit standard patio door stiles |
| Total Width (with Pull) | 105 mm | Width across the widest point including the integrated finger pull |
| Projection / Standoff | 44 mm | Distance the handle sits proud of the door surface |
| Door Thickness Fit | 25 mm – 55 mm | Fits standard residential aluminium, timber, and UPVC frames |
| Door Handing | Non-Handed / Reversible | Operates on both left-hand and right-hand sliding doors |
| Mounting Style | Surface-Mounted | Screws directly onto the frame face (no mortise pocket cutout) |
OPTIONS

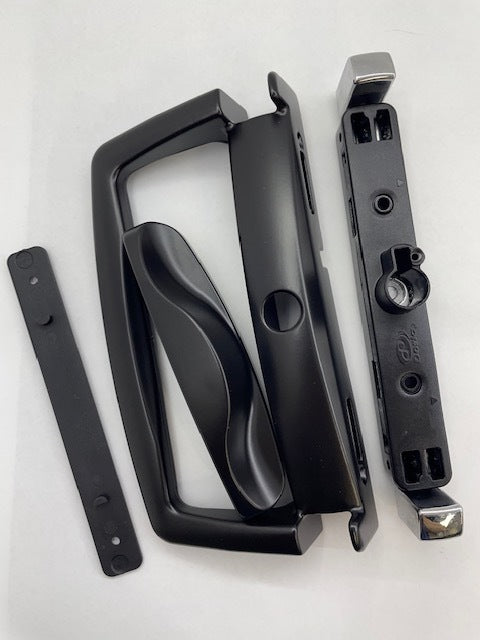

- SKU 4059 BLACK lock set Int/Ext keyed - complete kit including DS3130 (lock or latch set Internal and External cylinders); DS890 (external handle); DS3006 (keeper); DS155 (pin cylinder #96001)

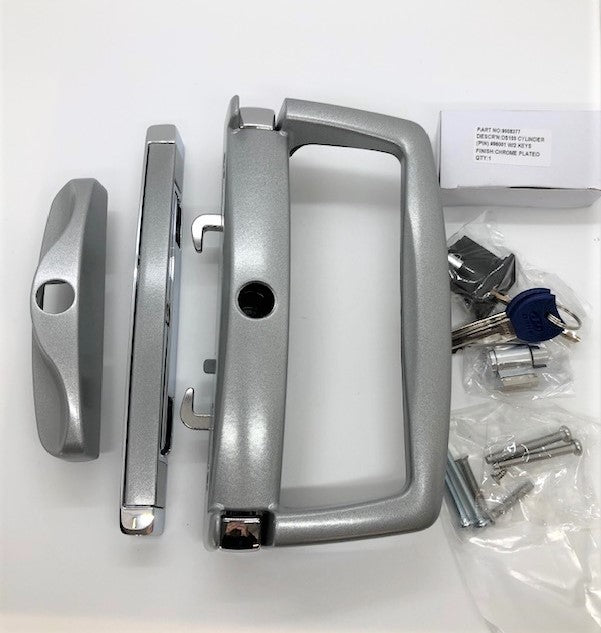

- SKU 4062 SILVER PEARL lock set Int/Ext keyed - complete kit including DS3130 (lock or latch set Internal and External cylinders); DS890 (external handle); DS3006 (keeper); DS155 (pin cylinder #96001)

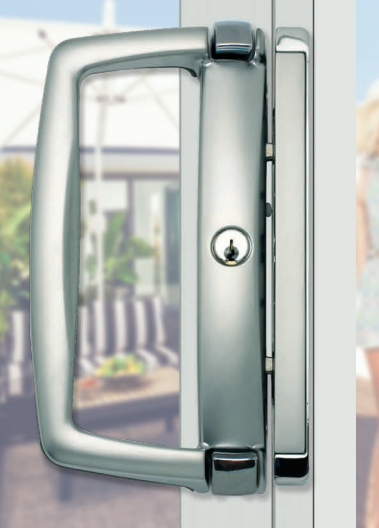

- SKU 4440 SILVER GREY lock set Int keyed/Ext non-keyed

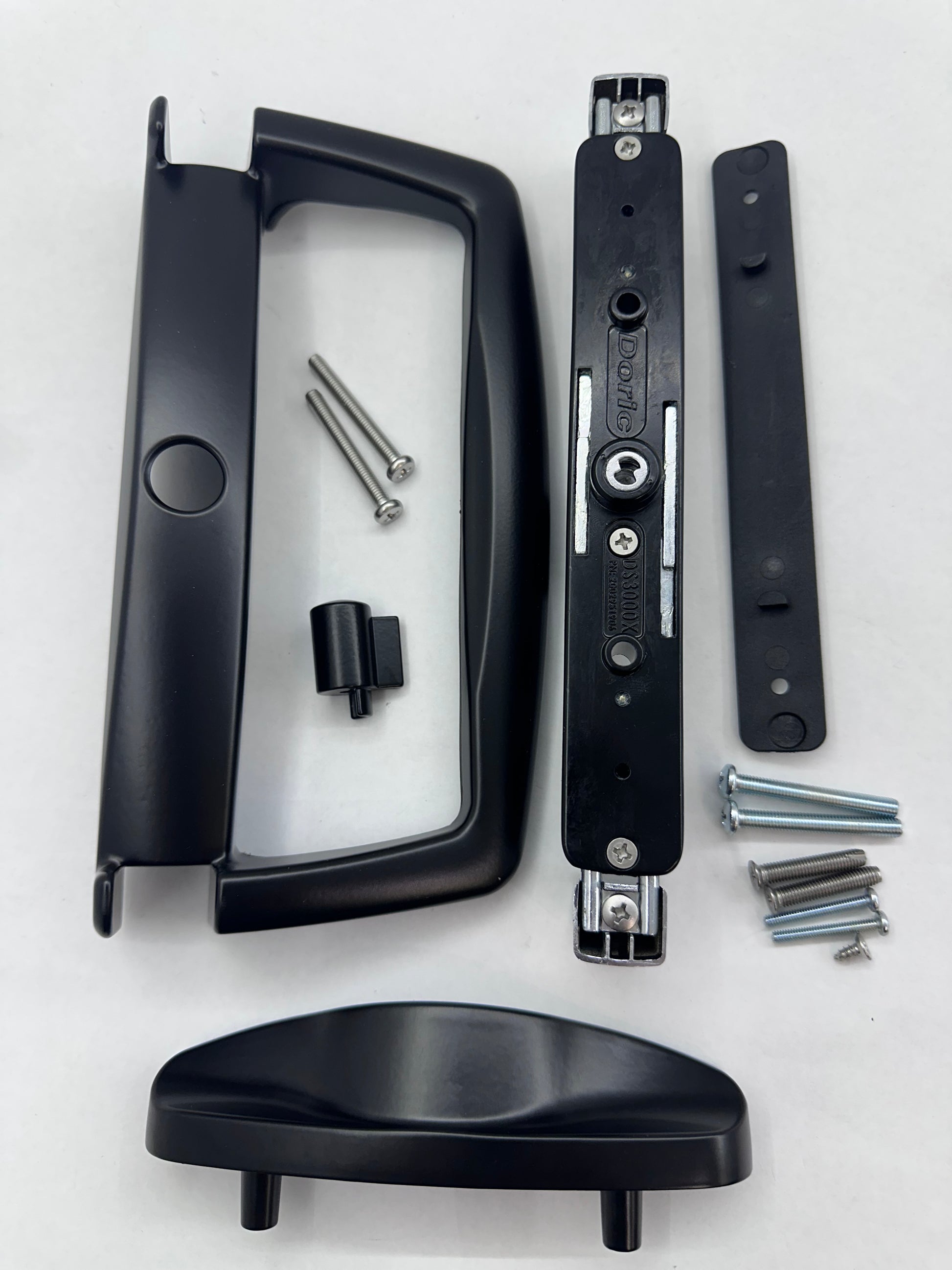

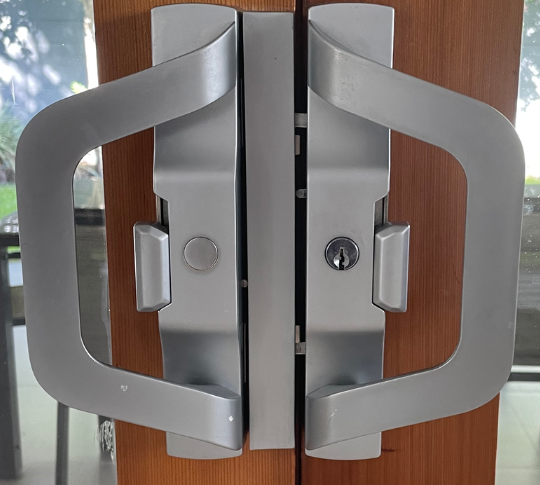

- SKU 4445 BLACK dummy handle - suits OXXO centre opening doors - add to SKU 4059
- SPECIAL ORDER PEARL WHITE lock set Int/Ext keyed #96001
NOTES:
NEED a packer search SKU 4167 HERE
LOOKING for the strike or keeper only SEARCH SKU 4108 HERE
NEED a replacement chassis only SEARCH SKU 4034 HERE

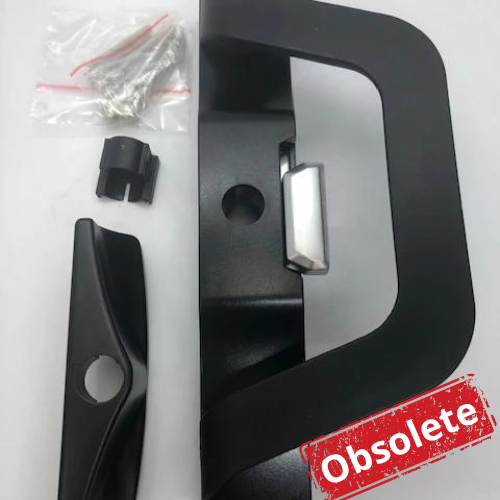

REPLACES the obsolete FHS Infinity and Dura series handle used by Trend (in particular covers the holes of the large strike/keeper)
OTHER special order colours are available - contact the team for lead time and pricing
